How do I choose between spring, rubber and pneumatic vibration isolators?

Start with the disturbing frequency of your equipment. Isolation only begins when the disturbing frequency is more than 1.41 times the isolator's natural frequency, and a ratio of 3 or higher is recommended. Rubber mounts suit higher-speed, lighter equipment; spring isolators with a natural frequency of 3–5 Hz suit chillers, pumps, fans and generators; pneumatic air mounts reaching 1.7 Hz suit precision instruments and semiconductor tools.

What information is needed to size a vibration isolator?

Provide the equipment operating weight, center of gravity position, number and layout of support points, operating speed (RPM) or excitation frequency, installation type (floor-mounted or suspended), environment (indoor, outdoor, corrosive) and any seismic or wind restraint requirements. Bellking engineers return a vibration isolation plan within 24 hours.

How long do Bellking vibration isolators last?

Under normal operating conditions, Bellking spring and transformer isolators perform efficiently for more than 15 years, and pneumatic air-mount isolators for more than 6 years. Steel parts use a Dacromet coating that passes 900-hour salt spray testing.

Can Bellking manufacture custom, non-standard vibration isolators?

Yes. Bellking offers 1:1 customization based on actual equipment parameters, with customized solutions available in as little as 3 working days through a defined process: requirement communication, confirmation, solution design, solution approval and production.

What lead time, warranty and documentation do you provide?

Standard models can ship within 24 hours. All products come with a 1-year free warranty, installation manuals and technical guidance. Factory inspection reports and third-party test reports are available, and production is ISO 9001 certified.

Custom Anti-vibration Spring Hangers Factories, Manufacturers

1 / 4

Custom Anti-vibration Spring Hangers Factories, Manufacturers

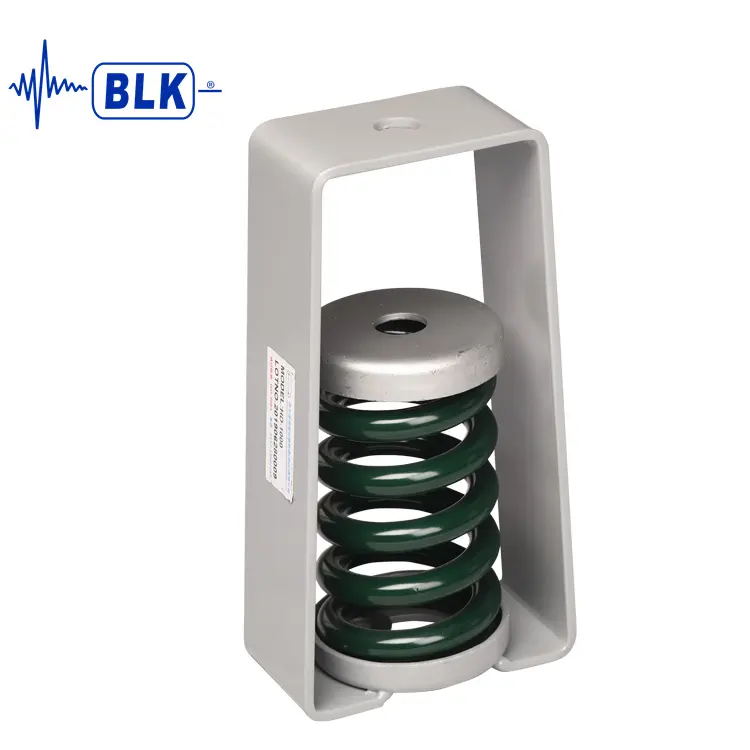

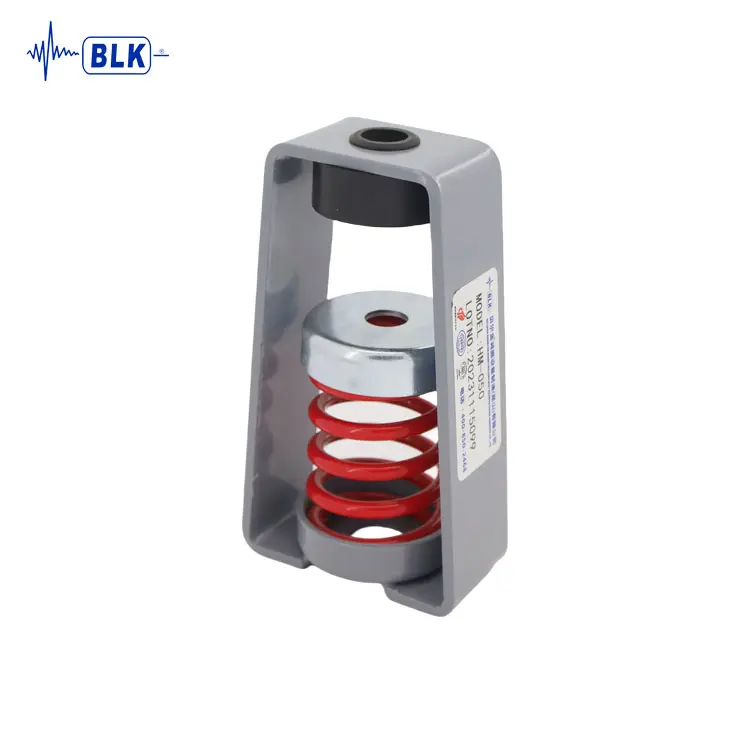

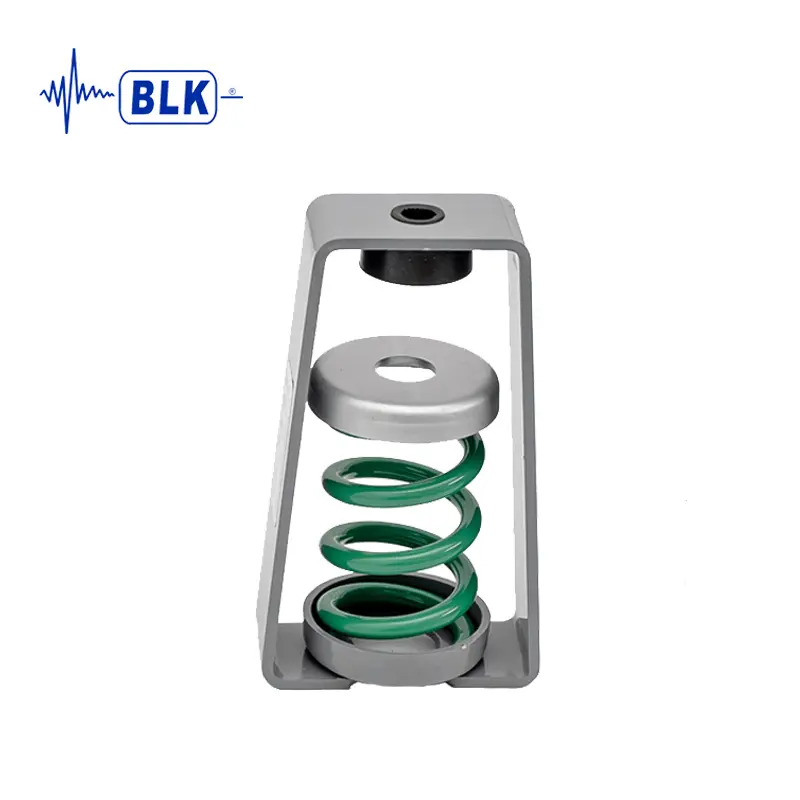

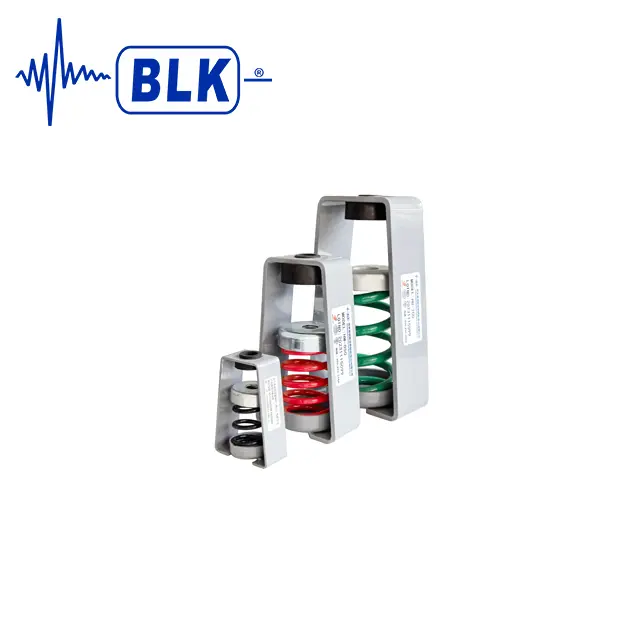

HS/HM/HB Hanger Spring Isolators offer superior low-frequency vibration & noise control. Designed with high-performance springs and durable construction, they ensure stable suspension for HVAC, fans, ducts and piping systems, delivering reliable anti-vibration performance.

Send Inquiry

Product Description

Product Description: Hanging Spring Vibration Isolator

The hanging spring vibration isolator is a professional suspension damping product specially engineered for overhead electromechanical equipment and pipeline vibration control. Designed to replace standard rubber isolators lacking sufficient damping on suspended installations, it delivers an ultra-low natural frequency and exceptional low-frequency isolation.

High-Toughness Steel Springs

Built with heat-treated alloy steel springs and an integrated structure for unmatched low-frequency isolation stability.

Omnidirectional Damping

Fully absorbs vertical and horizontal micro-vibrations, preventing transmission to the primary building structure.

Galvanized Anti-Corrosion

All metal hardware features industrial galvanized coating, delivering rust and weather resistance in humid or extreme settings.

Maintenance-Free Design

Compact layout with easy suspension mounting, requiring zero daily maintenance throughout long-term operations.

Vibration Elimination & Acoustic Performance

It can comprehensively absorb vertical and horizontal micro-vibrations, thoroughly block vibration transmission of suspended air ducts, ventilation pipes, fire pipelines, and ceiling-mounted air conditioning units, and greatly reduce building structural noise and resonance interference. All metal parts are processed with galvanized anti-corrosion technology, delivering excellent rust resistance, oxidation resistance, and weather durability, adapting seamlessly to humid, high-temperature, and long-term indoor and outdoor working environments.

Engineering Applications & System Reliability

Featuring a compact structure, simple installation, and no daily maintenance, this hanging isolator boasts strong compatibility and wide applicability. It is widely used in HVAC systems, building electromechanical engineering, industrial suspended equipment, and pipeline systems. It effectively avoids vibration-induced pipeline loosening and equipment fatigue damage, stabilizes system operation, and extends the service life of mechanical and pipeline facilities. It is an essential, cost-effective vibration isolation accessory for modern industrial and architectural vibration reduction projects.

Frequently Asked Questions (FAQ)

1. What equipment is the hanging spring vibration isolator designed for?

It is specifically designed for overhead electromechanical equipment and suspended piping systems, including suspended air ducts, ventilation pipes, fire pipelines, and ceiling-mounted air conditioning units.

2. How does it outperform standard rubber isolators?

Unlike ordinary rubber isolators with limited low-frequency damping, this unit uses high-toughness heat-treated steel springs with an ultra-low natural frequency to isolate heavy low-frequency vibrations effectively.

3. Can it withstand harsh or outdoor operating environments?

Yes. All metal components are treated with galvanized anti-corrosion technology, providing superior rust and oxidation resistance suitable for humid, high-temperature, indoor, and outdoor installations.

4. Does the isolator absorb multi-directional vibrations?

Yes, it comprehensively absorbs both vertical and horizontal micro-vibrations, preventing transmission through the building structure and drastically reducing resonance and acoustic noise.

5. Does this suspension damping system require regular maintenance?

No, it is built with a compact integrated suspension structure designed for straightforward installation and completely maintenance-free long-term operation.

6. How does it protect overhead pipelines and equipment?

By stopping vibration transmission at the source, it prevents vibration-induced loosening of joints and pipeline fittings, minimizes metal fatigue damage, and significantly extends equipment service life.
