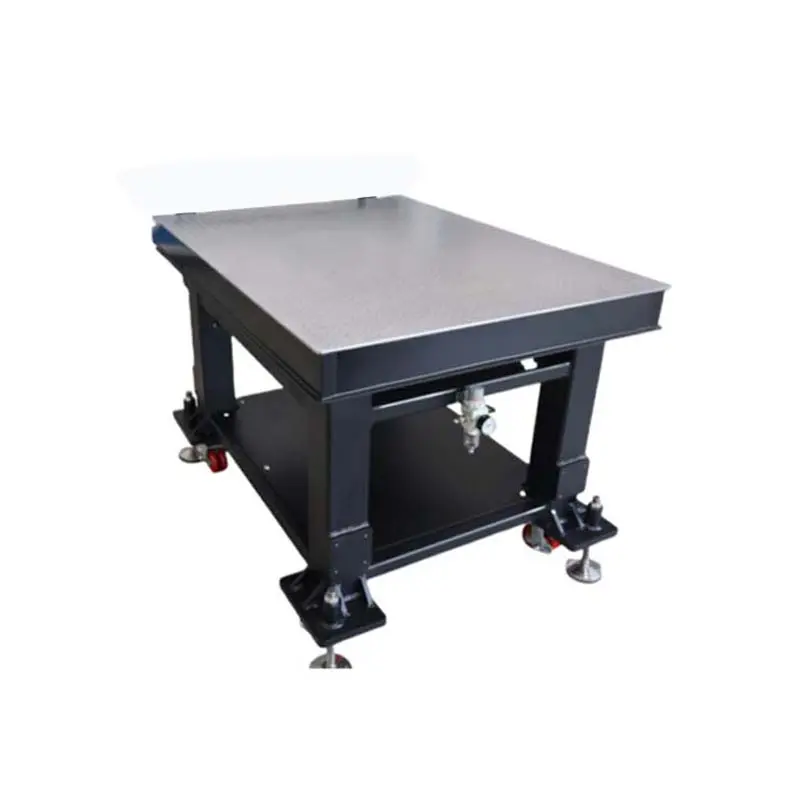

High-Quality BK-DT Type Low-Frequency High-Damping Optical Vibration Isolation Platform Factory, Manufacturer

High-Quality BK-DT Type Low-Frequency High-Damping Optical Vibration Isolation Platform Factory, Manufacturer

BK-DT Low-Frequency High-Damping Optical Vibration Isolation Platform features a precision air-spring system with 1.2–2.0Hz natural frequency, delivering exceptional multi-directional vibration isolation. Its honeycomb-core stainless steel top ensures high rigidity and flatness, with auto-leveling via FESTO valves. Ideal for microscopes, lasers, and precision metrology to guarantee ultra-stable operation.

Send Inquiry

Product Description

Product Description

High-Efficiency Vibration Isolation

Equipped with an integrated precision air spring vibration isolation system delivering a 1.2 – 2.0 Hz natural frequency. Provides multi-directional vibration attenuation with optimal vertical isolation to shield instrument precision from ambient mechanical disturbance.

Automatic Self-Leveling Mechanism

Features automated level adjustment. Whenever load-induced displacement occurs, high-precision valves instantaneously regulate internal air spring pressure to restore and maintain uniform horizontal balance without manual intervention.

Honeycomb Panel & Matte Finish

Constructed with lightweight, high-rigidity honeycomb core splints offering broadband damping to suppress surface resonance. The top plate is precision-ground magnetic stainless steel with a rotary-ground non-reflective matte finish and an array of M6 mounting holes for optical mounting.

German Pneumatics & Rigid Frame

Operates smoothly at an air pressure range of 0.3 – 0.6 MPa. Comes standard with a pressure-regulating filter valve and genuine imported German FESTO pneumatic components, mounted on a rigid welded steel pipe support structure.

Frequently Asked Questions

Q: What is the natural frequency of the vibration isolation system?
The system features a natural frequency of 1.2 to 2.0 Hz, offering multi-directional vibration attenuation with exceptional dampening performance in the vertical direction.
Q: How does the automatic level adjustment function operate?
When load displacement or weight redistribution occurs, internal high-precision valves automatically adjust the pneumatic pressure inside the air springs to rapidly re-establish and sustain a level working surface.
Q: What working air pressure is required for operation?
The required operating air pressure is 0.3 to 0.6 MPa. The platform includes a standard pressure-regulating filter valve to ensure consistent, long-term stability once the air line is connected.
Q: Can this platform be used with a standard laboratory compressor?
Yes. The system can be powered by a small silent air compressor, making it fully compatible with quiet testing rooms and sensitive optical laboratory environments.
Q: What materials and surface specifications are used for the top plate?
The plate features a honeycomb core structure combined with a top panel made of high-quality magnetic permeability stainless steel. It is precision-ground with a de-burred, anti-glare matte finish and configured with an M6 threaded hole array.
Q: What brand of pneumatic components are used?
The platform integrates high-reliability pneumatic control components imported directly from Germany (FESTO).
