How do I choose between spring, rubber and pneumatic vibration isolators?

Start with the disturbing frequency of your equipment. Isolation only begins when the disturbing frequency is more than 1.41 times the isolator's natural frequency, and a ratio of 3 or higher is recommended. Rubber mounts suit higher-speed, lighter equipment; spring isolators with a natural frequency of 3–5 Hz suit chillers, pumps, fans and generators; pneumatic air mounts reaching 1.7 Hz suit precision instruments and semiconductor tools.

What information is needed to size a vibration isolator?

Provide the equipment operating weight, center of gravity position, number and layout of support points, operating speed (RPM) or excitation frequency, installation type (floor-mounted or suspended), environment (indoor, outdoor, corrosive) and any seismic or wind restraint requirements. Bellking engineers return a vibration isolation plan within 24 hours.

How long do Bellking vibration isolators last?

Under normal operating conditions, Bellking spring and transformer isolators perform efficiently for more than 15 years, and pneumatic air-mount isolators for more than 6 years. Steel parts use a Dacromet coating that passes 900-hour salt spray testing.

Can Bellking manufacture custom, non-standard vibration isolators?

Yes. Bellking offers 1:1 customization based on actual equipment parameters, with customized solutions available in as little as 3 working days through a defined process: requirement communication, confirmation, solution design, solution approval and production.

What lead time, warranty and documentation do you provide?

Standard models can ship within 24 hours. All products come with a 1-year free warranty, installation manuals and technical guidance. Factory inspection reports and third-party test reports are available, and production is ISO 9001 certified.

Low Price BK-DS Type Damped Spring Mounts Factory, Manufacturers

1 / 4

Low Price BK-DS Type Damped Spring Mounts Factory, Manufacturers

BK‑DS damped spring isolator features spring + oil‑damped cylinder, 98% isolation efficiency, anti‑oil cap, EPDM, low natural frequency, anti‑resonance; ideal for punches, shears, heavy machinery

Send Inquiry

Product Description

Products Description

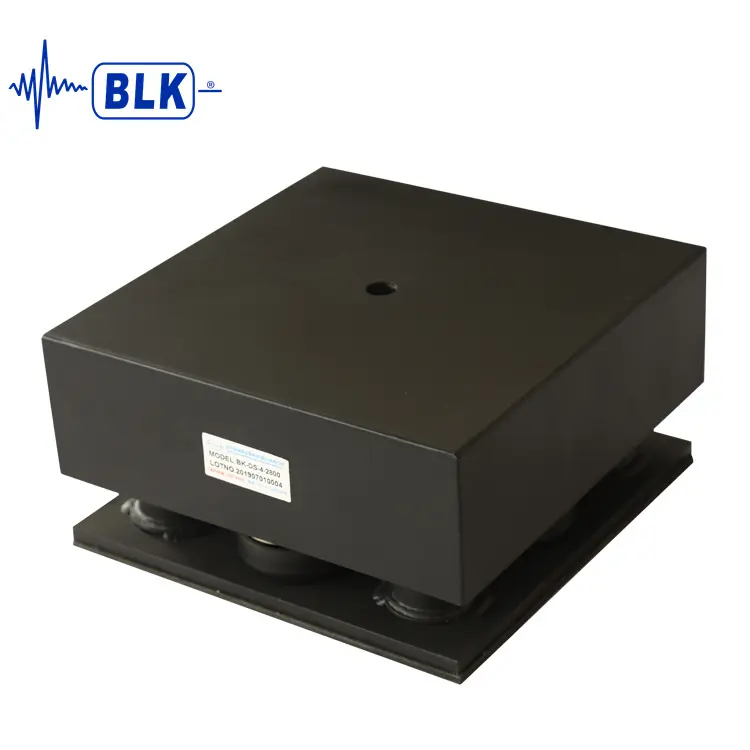

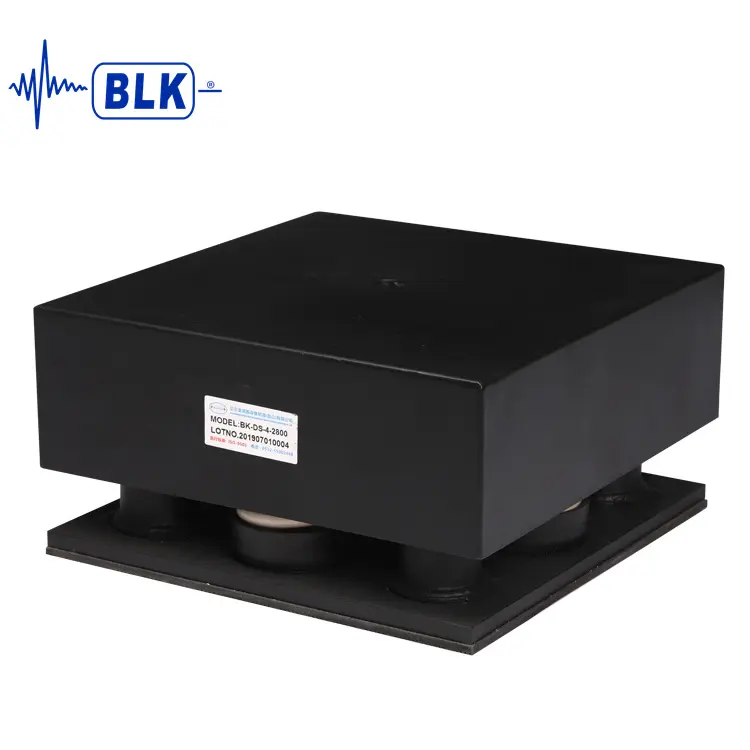

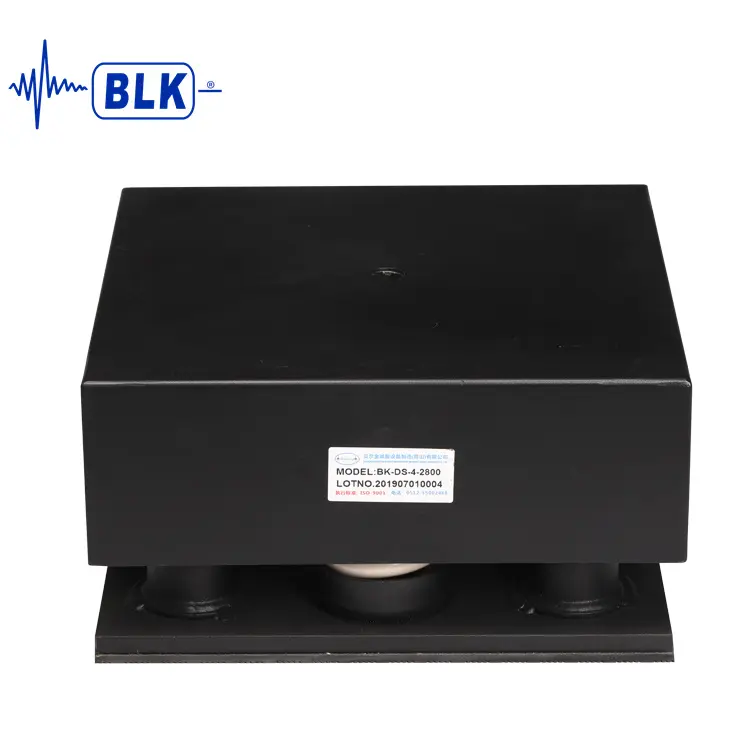

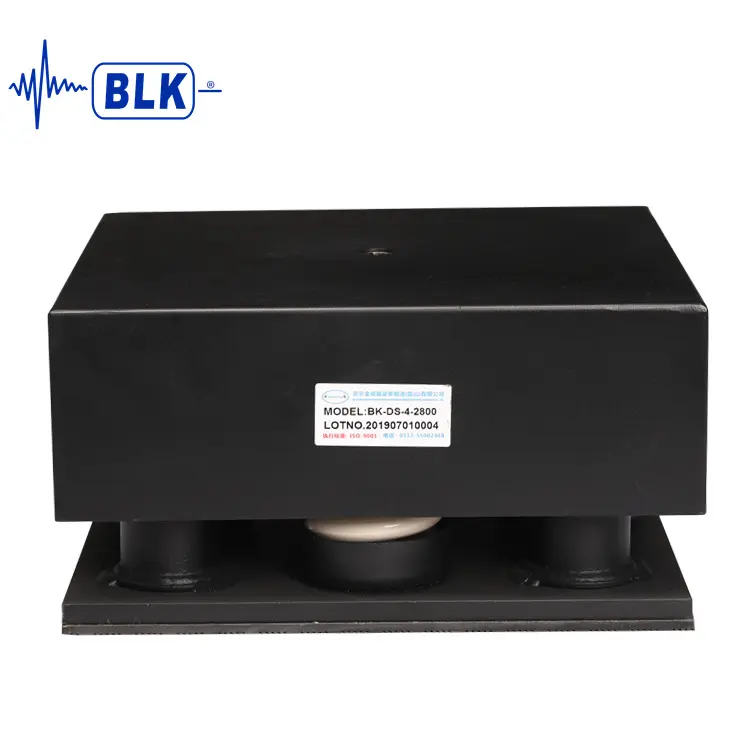

BK-DS is a patented high-performance damped spring isolator, also known as “press isolator”. It integrates high-strength springs with hydraulic dampers, featuring a low natural frequency of 3–5 Hz and a damping ratio of 0.15–0.18. With EPDM construction and oil-resistant caps, it prevents fluid leakage and corrosion. Offering 98% isolation efficiency, it effectively eliminates resonance and controls shock vibration for presses, air compressors, shears and industrial washers. It ensures stable operation, protects structures, and extends machinery lifespan.

High Isolation Efficiency

Delivers 98% isolation efficiency with a low natural frequency of 3–5 Hz and damping ratio of 0.15–0.18.

Patented Hybrid Structure

Seamlessly integrates high-strength springs with hydraulic dampers for optimal press isolation.

Durable & Leak-Proof

Features EPDM construction and oil-resistant caps to prevent corrosion and fluid leakage.

Versatile Application

Controls shock vibration for presses, air compressors, shears, and industrial washers.

Frequently Asked Questions

What is the BK-DS damped spring isolator?

BK-DS is a patented high-performance damped spring isolator (press isolator) that combines high-strength springs with hydraulic dampers to eliminate resonance and control shock vibration.

What is the vibration isolation efficiency of the BK-DS isolator?

The BK-DS offers up to 98% isolation efficiency, featuring a low natural frequency of 3–5 Hz and a damping ratio of 0.15–0.18.

How does the BK-DS prevent leakage and corrosion?

It is designed with durable EPDM construction and equipped with oil-resistant caps, effectively preventing fluid leakage and resisting industrial corrosion.

Which equipment is suitable for BK-DS isolators?

It is ideal for high-vibration machinery including presses, air compressors, shears, and industrial washers.

How does this press isolator protect industrial machinery?

By eliminating resonance and controlling severe shock vibrations, it ensures stable operational performance, protects nearby building structures, and extends overall machinery lifespan.
