How do I choose between spring, rubber and pneumatic vibration isolators?

Start with the disturbing frequency of your equipment. Isolation only begins when the disturbing frequency is more than 1.41 times the isolator's natural frequency, and a ratio of 3 or higher is recommended. Rubber mounts suit higher-speed, lighter equipment; spring isolators with a natural frequency of 3–5 Hz suit chillers, pumps, fans and generators; pneumatic air mounts reaching 1.7 Hz suit precision instruments and semiconductor tools.

What information is needed to size a vibration isolator?

Provide the equipment operating weight, center of gravity position, number and layout of support points, operating speed (RPM) or excitation frequency, installation type (floor-mounted or suspended), environment (indoor, outdoor, corrosive) and any seismic or wind restraint requirements. Bellking engineers return a vibration isolation plan within 24 hours.

How long do Bellking vibration isolators last?

Under normal operating conditions, Bellking spring and transformer isolators perform efficiently for more than 15 years, and pneumatic air-mount isolators for more than 6 years. Steel parts use a Dacromet coating that passes 900-hour salt spray testing.

Can Bellking manufacture custom, non-standard vibration isolators?

Yes. Bellking offers 1:1 customization based on actual equipment parameters, with customized solutions available in as little as 3 working days through a defined process: requirement communication, confirmation, solution design, solution approval and production.

What lead time, warranty and documentation do you provide?

Standard models can ship within 24 hours. All products come with a 1-year free warranty, installation manuals and technical guidance. Factory inspection reports and third-party test reports are available, and production is ISO 9001 certified.

Custom BKDE Type Rubber Mounts Factory, Manufacturer

1 / 2

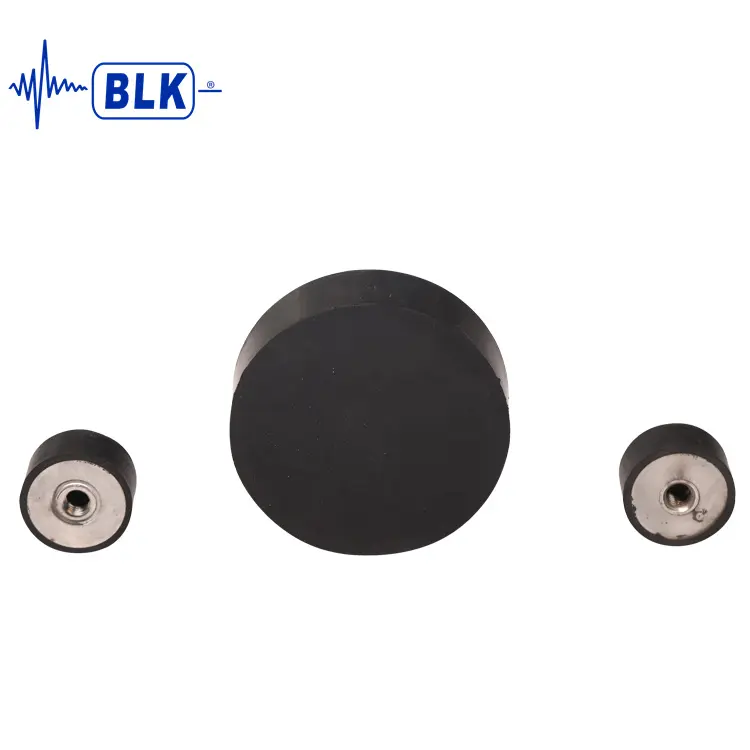

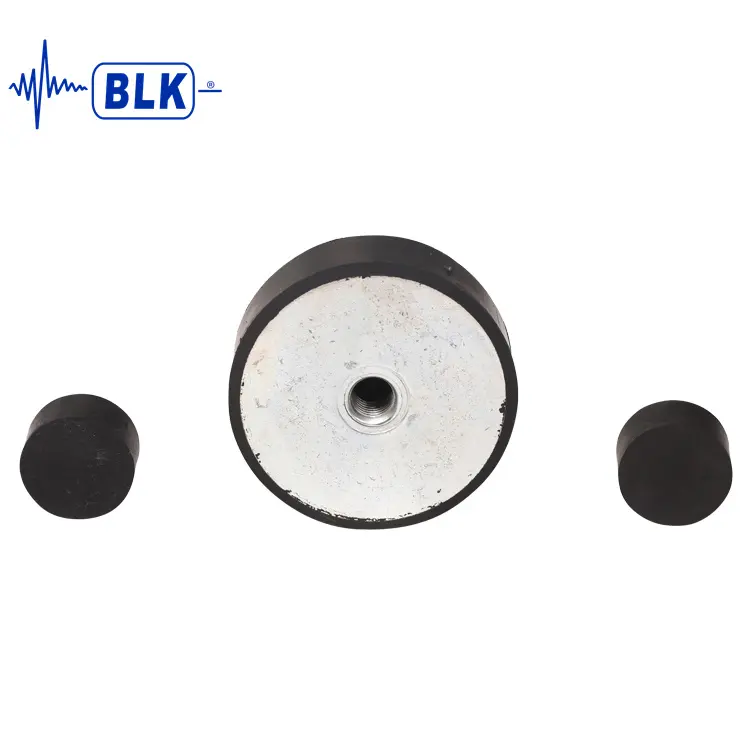

Custom BKDE Type Rubber Mounts Factory, Manufacturer

BKDE Rubber Vibration Isolators are constructed with high-damping, weather-resistant rubber and a reinforced metal framework. They deliver efficient multi-directional vibration and noise reduction, excellent load stability, and long fatigue life. Widely used in pumps, fans, motors, HVAC and general industrial equipment for reliable shock absorption and equipment protection.

Send Inquiry

Product Description

Products Description

The BKDE cylindrical rubber isolator is a reliable damping product engineered for demanding industrial environments. Made of high-elastic special rubber and reinforced metal components, it delivers outstanding shock absorption, noise reduction, and aging resistance.

Premium Damping Material

High-elastic special rubber bonded with reinforced metal components for peak durability and aging resistance.

Integrated Solid Structure

Robust unit design providing stable load capacity, easy installation, and persistent structural integrity.

Resonance Protection

Effectively buffers impact, suppresses vibration transmission, and shields mechanical equipment from structural resonance.

With a solid integrated structure, stable load capacity, and easy installation, it effectively buffers impact and suppresses vibration transmission. It prevents structural resonance, secures stable operation, and greatly extends the overall service life of mechanical facilities.

Recommended Applications

Designed to deliver optimal damping performance across core industrial equipment:

Fans & Blowers Water Pumps Electrical Equipment General Industrial Machinery

Frequently Asked Questions

What materials are used in the BKDE cylindrical rubber isolator?

The BKDE isolator is manufactured using high-elastic special rubber compound and reinforced metal components, delivering superior mechanical strength and extended elasticity.

How does the isolator extend equipment service life?

By effectively buffering impact, absorbing shock, and mitigating vibration transmission, it prevents damaging structural resonance and significantly reduces mechanical wear on internal components.

What types of machinery are suitable for this isolator?

It is ideal for a broad range of machinery including industrial fans, water pumps, electrical apparatus, and general manufacturing facilities requiring vibration mitigation.

Does this product provide resistance against environmental aging?

Yes, the specialized rubber formulation offers outstanding resistance to aging, degradation, and environmental stresses, ensuring stable long-term performance.

Is the BKDE isolator easy to install?

Yes, it features a solid integrated structure with dependable load-bearing stability, facilitating fast and straightforward mounting under compatible machinery bases.

How effective is the isolator at noise reduction?

The combination of damping rubber and sturdy metallic inserts dampens structural vibration at the source, preventing acoustic radiation and drastically lowering operational noise levels.
