How do I choose between spring, rubber and pneumatic vibration isolators?

Start with the disturbing frequency of your equipment. Isolation only begins when the disturbing frequency is more than 1.41 times the isolator's natural frequency, and a ratio of 3 or higher is recommended. Rubber mounts suit higher-speed, lighter equipment; spring isolators with a natural frequency of 3–5 Hz suit chillers, pumps, fans and generators; pneumatic air mounts reaching 1.7 Hz suit precision instruments and semiconductor tools.

What information is needed to size a vibration isolator?

Provide the equipment operating weight, center of gravity position, number and layout of support points, operating speed (RPM) or excitation frequency, installation type (floor-mounted or suspended), environment (indoor, outdoor, corrosive) and any seismic or wind restraint requirements. Bellking engineers return a vibration isolation plan within 24 hours.

How long do Bellking vibration isolators last?

Under normal operating conditions, Bellking spring and transformer isolators perform efficiently for more than 15 years, and pneumatic air-mount isolators for more than 6 years. Steel parts use a Dacromet coating that passes 900-hour salt spray testing.

Can Bellking manufacture custom, non-standard vibration isolators?

Yes. Bellking offers 1:1 customization based on actual equipment parameters, with customized solutions available in as little as 3 working days through a defined process: requirement communication, confirmation, solution design, solution approval and production.

What lead time, warranty and documentation do you provide?

Standard models can ship within 24 hours. All products come with a 1-year free warranty, installation manuals and technical guidance. Factory inspection reports and third-party test reports are available, and production is ISO 9001 certified.

Custom BKM Type Rubber Mounts Factories, Manufacturers

1 / 5

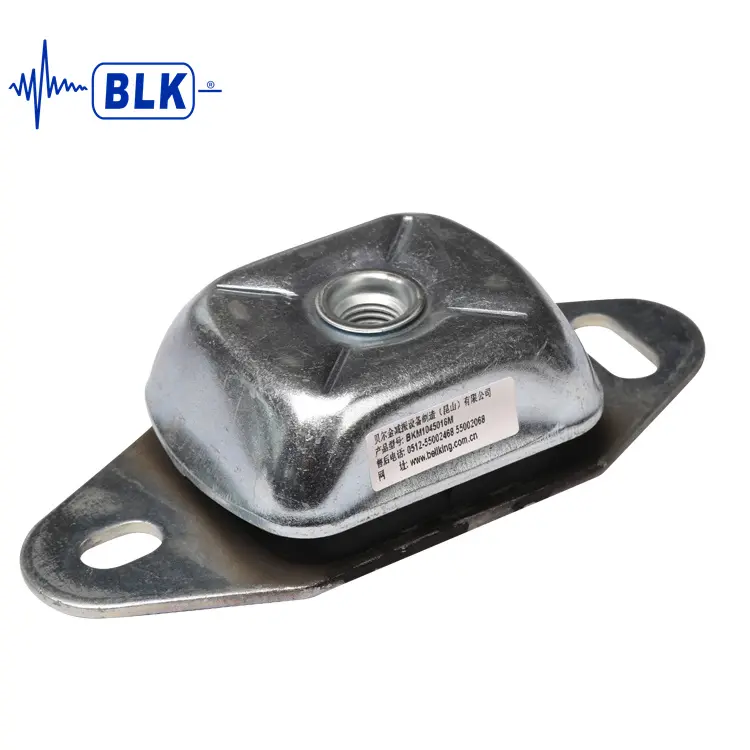

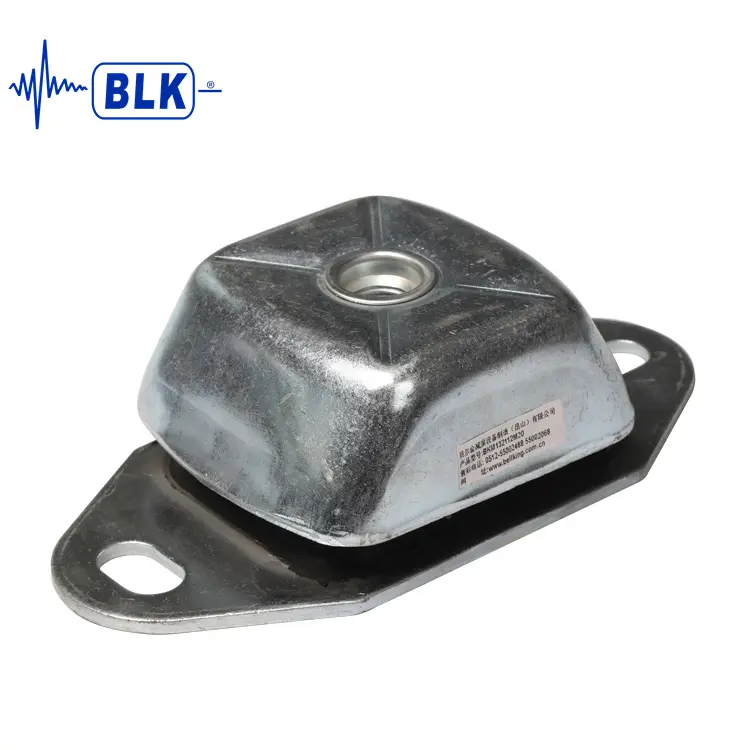

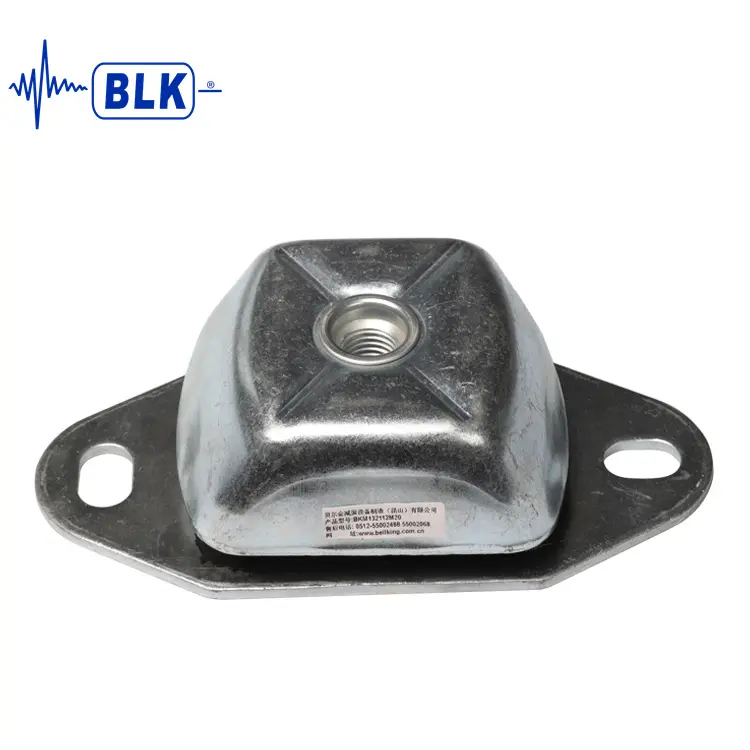

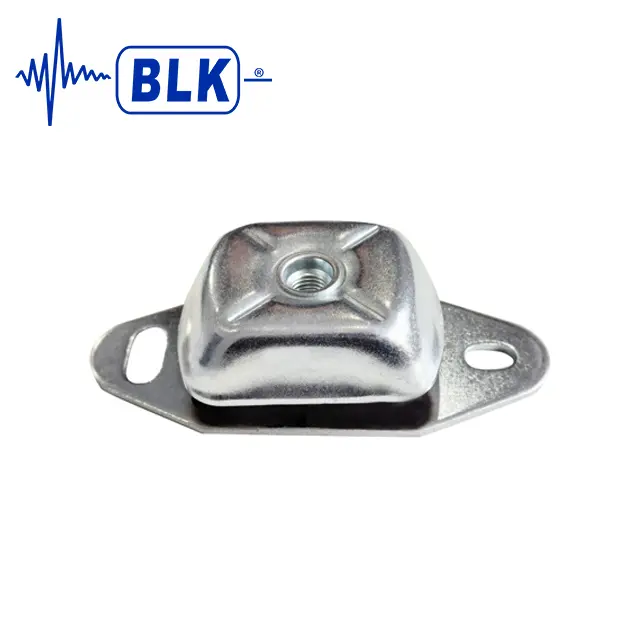

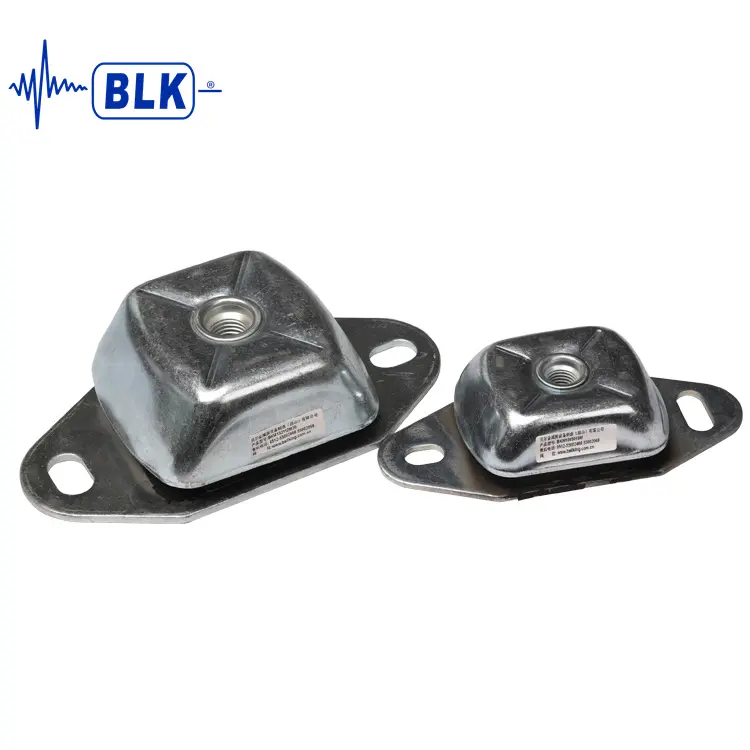

Custom BKM Type Rubber Mounts Factories, Manufacturers

The original design of this mount is for ship engine with small dimensions and simple installation. It’s good for shock situation. The top metal cap can protect rubber against oil. There are different types and hardness of mounts, the load range is from 32kg to 3000kg, and natural frequency lower than 8Hz. The vibration isolation is very high.

Send Inquiry

Product Description

Industrial Vibration Control

BKM Rubber Vibration Isolator Solutions

The BKM rubber vibration isolator is a high-performance, multi-purpose damping component widely used in industrial, commercial and marine mechanical vibration control. Crafted from premium high-elastic rubber and galvanized steel accessories, it adopts an optimized bell-shaped structural design to achieve multi-directional vibration isolation and efficient shock absorption. Different from ordinary rubber parts, the BKM isolator features low natural frequency and high damping coefficient, which can effectively eliminate low-frequency resonance, buffer instantaneous mechanical impact, and greatly reduce vibration and noise generated by operating equipment.

Material Stability

With excellent material stability, this rubber isolator delivers outstanding anti-aging, oil-resistant and compression-resistant performance. It maintains stable elasticity and working performance under long-term high-frequency operation, humid environments and temperature fluctuations, without permanent deformation or fatigue failure.

Reinforced Rigidity

The integrated metal reinforcement structure enhances overall rigidity and load-bearing capacity, ensuring uniform force bearing and reliable structural safety throughout long service cycles.

Effortless Installation

Lightweight, compact and effortless to install, the BKM rubber isolator requires no complex tools or daily maintenance. It is highly adaptable to various equipment, including water pumps, fans, generators, compressors and marine electromechanical facilities.

By cutting off vibration transmission between equipment and the foundation, it protects mechanical structures from vibration fatigue damage, lowers operating noise and maintenance costs. It provides a cost-effective, durable and universal vibration reduction solution for diverse industrial and building mechanical systems.

Frequently Asked Questions

What materials are used to construct the BKM rubber vibration isolator?

It is crafted from premium high-elastic rubber paired with galvanized steel accessories and features an integrated metal reinforcement structure to ensure durability and uniform load-bearing capacity.

How does the BKM isolator differ from ordinary rubber dampening parts?

Unlike ordinary rubber components, the BKM isolator possesses a low natural frequency and a high damping coefficient, which effectively eliminates low-frequency resonance and buffers instantaneous mechanical impacts.

Can the BKM vibration isolator withstand challenging environmental conditions?

Yes, the unit delivers outstanding anti-aging, oil-resistant, and compression-resistant performance, maintaining stable elasticity under continuous high-frequency operation, high humidity, and wide temperature swings without fatigue failure.

What types of equipment are compatible with this vibration isolator?

The BKM isolator is highly versatile and suitable for water pumps, industrial fans, power generators, air compressors, and various marine electromechanical facilities.

Does the BKM isolator require special tools or ongoing maintenance?

No, the unit features a lightweight, compact design that installs effortlessly without complex tools and requires no routine daily maintenance throughout its service life.

How does this product help reduce overall operational costs?

By isolating vibrations between operating equipment and building foundations, it prevents structural fatigue damage, reduces operating noise levels, and minimizes future mechanical maintenance costs.
