How do I choose between spring, rubber and pneumatic vibration isolators?

Start with the disturbing frequency of your equipment. Isolation only begins when the disturbing frequency is more than 1.41 times the isolator's natural frequency, and a ratio of 3 or higher is recommended. Rubber mounts suit higher-speed, lighter equipment; spring isolators with a natural frequency of 3–5 Hz suit chillers, pumps, fans and generators; pneumatic air mounts reaching 1.7 Hz suit precision instruments and semiconductor tools.

What information is needed to size a vibration isolator?

Provide the equipment operating weight, center of gravity position, number and layout of support points, operating speed (RPM) or excitation frequency, installation type (floor-mounted or suspended), environment (indoor, outdoor, corrosive) and any seismic or wind restraint requirements. Bellking engineers return a vibration isolation plan within 24 hours.

How long do Bellking vibration isolators last?

Under normal operating conditions, Bellking spring and transformer isolators perform efficiently for more than 15 years, and pneumatic air-mount isolators for more than 6 years. Steel parts use a Dacromet coating that passes 900-hour salt spray testing.

Can Bellking manufacture custom, non-standard vibration isolators?

Yes. Bellking offers 1:1 customization based on actual equipment parameters, with customized solutions available in as little as 3 working days through a defined process: requirement communication, confirmation, solution design, solution approval and production.

What lead time, warranty and documentation do you provide?

Standard models can ship within 24 hours. All products come with a 1-year free warranty, installation manuals and technical guidance. Factory inspection reports and third-party test reports are available, and production is ISO 9001 certified.

Low Price BKVV Type Rubber Mounts Factories, Manufacturers

1 / 4

Low Price BKVV Type Rubber Mounts Factories, Manufacturers

BKVV Rubber Vibration Isolators are made of high-damping, wear-resistant rubber with a compact, reinforced structure. They deliver excellent vibration and noise attenuation, stable mechanical performance, and strong durability. Widely used in pumps, fans, motors, HVAC and general industrial equipment to reduce shock and extend service life.

Send Inquiry

Product Description

Product Overview & Engineering Specifications

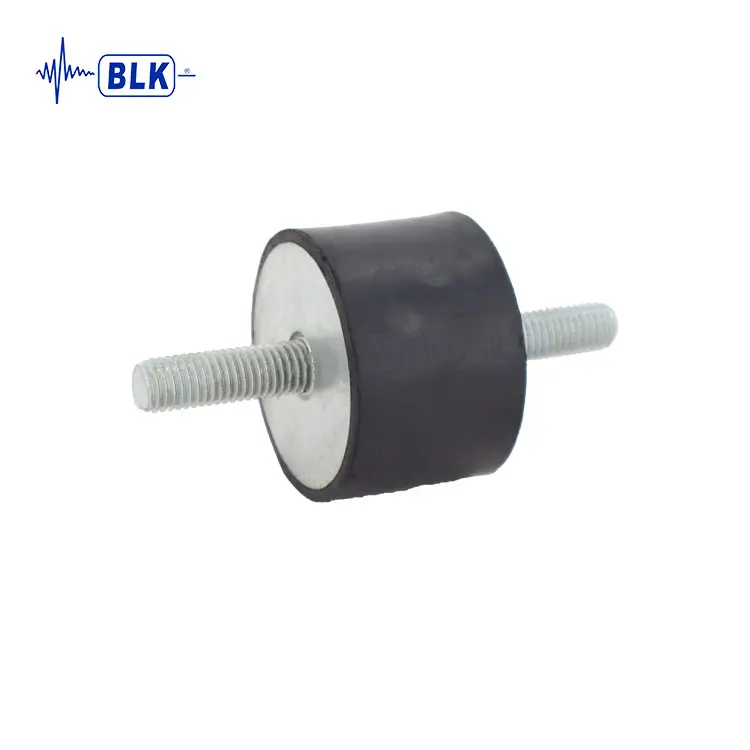

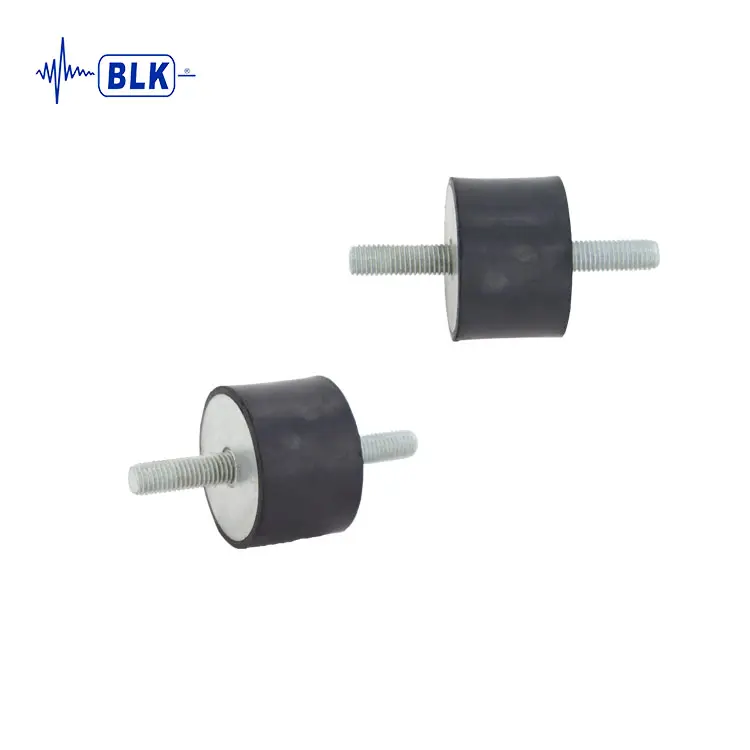

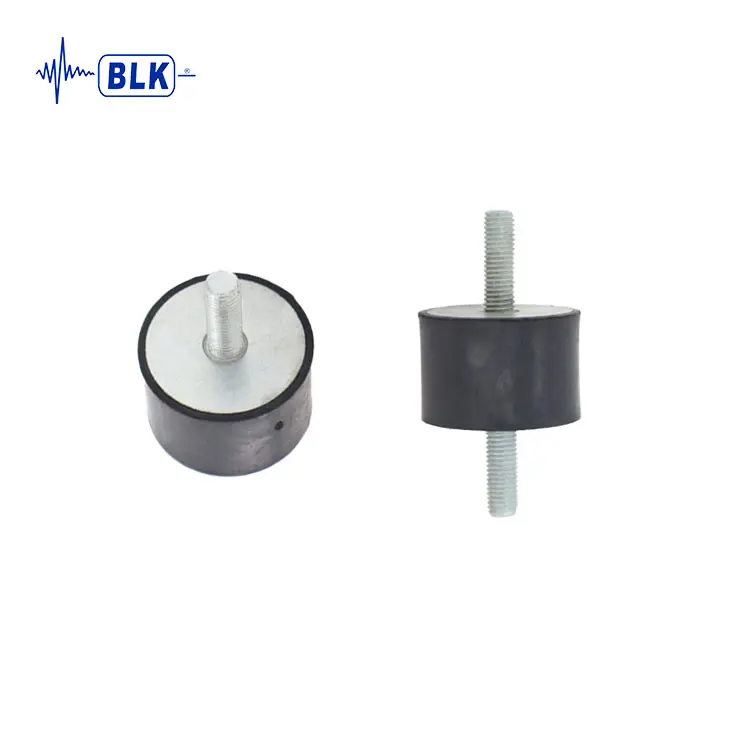

The BKVV cylindrical rubber vibration isolator is a high-performance and universal damping component widely used for industrial electromechanical vibration and noise reduction. Adopting a standard integrated cylindrical structure, this rubber isolator features uniform force bearing and symmetrical deformation performance, achieving stable multi-directional vibration isolation.

Uniform Cylindrical Design

Different from irregular rubber dampers, its regular cylindrical design ensures consistent elasticity and damping effect in all directions, effectively absorbing mechanical vibration, operational shaking, and instantaneous impact force generated by rotating equipment.

High-Grade Synthetic Rubber

Made of optimized synthetic rubber for excellent elasticity, compression recovery, and fatigue resistance. It maintains stable performance under long-term high-frequency operation and cyclic pressure without permanent deformation, cracking, or aging failure.

Reinforced Rigid Metal Sleeves

Built-in rigid metal sleeves significantly enhance installation stability and load capacity. This specialized construction prevents component loosening and structural displacement during intense mechanical operation.

Environmental Durability & Compatibility

The material formulation provides dependable oil resistance, oxidation resistance, and environmental adaptability, making it well-suited for indoor, outdoor, and humid industrial working conditions.

Featuring a compact structure, simple installation, and zero daily maintenance, this cylindrical rubber isolator boasts high compatibility and cost performance. It isolates vibration transmission, suppresses structural resonance, lowers running noise, and protects equipment and building foundations from vibration fatigue damage.

Typical Equipment Applications

Water Pumps Industrial Fans Small Compressors Electrical Equipment General Industrial Machinery Mechanical Building Systems

Frequently Asked Questions

What machinery is the BKVV cylindrical vibration isolator suitable for?

It is widely applied to water pumps, industrial fans, small compressors, electrical equipment, and general industrial machinery, providing reliable vibration control across diverse mechanical systems.

How does the cylindrical design improve damping performance?

The regular cylindrical geometry delivers uniform force distribution and symmetrical deformation. Unlike irregular dampers, it guarantees consistent elasticity and damping in all directions to absorb continuous shaking and sudden shocks.

Can this rubber isolator operate in demanding environments?

Yes. Formulated with high-grade synthetic rubber, the isolator exhibits exceptional oil resistance, oxidation resistance, and environmental adaptability, performing reliably in indoor, outdoor, and humid industrial settings.

What prevents the isolator from deforming or aging under cyclic pressure?

The optimized synthetic rubber proportion provides superior compression recovery and fatigue resistance, preventing cracking, permanent deformation, or premature aging failure during long-term high-frequency operation.

What is the advantage of the built-in rigid metal sleeves?

The rigid metal sleeves reinforce the structure, enhance load-bearing capacity, ensure firm installation, and safeguard the equipment against operational loosening and physical displacement.

Does the BKVV isolator require scheduled maintenance?

No. It features a compact, durable construction that operates with zero daily maintenance, offering an economical, long-term vibration isolation solution.
