Product Description
Products Description

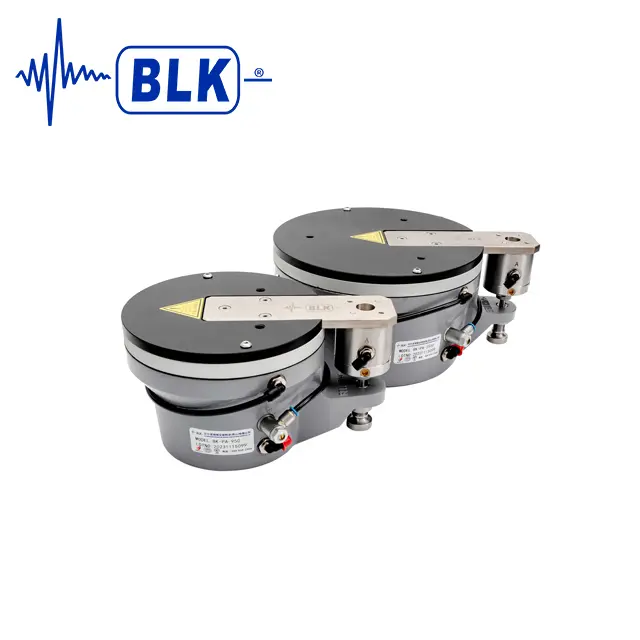

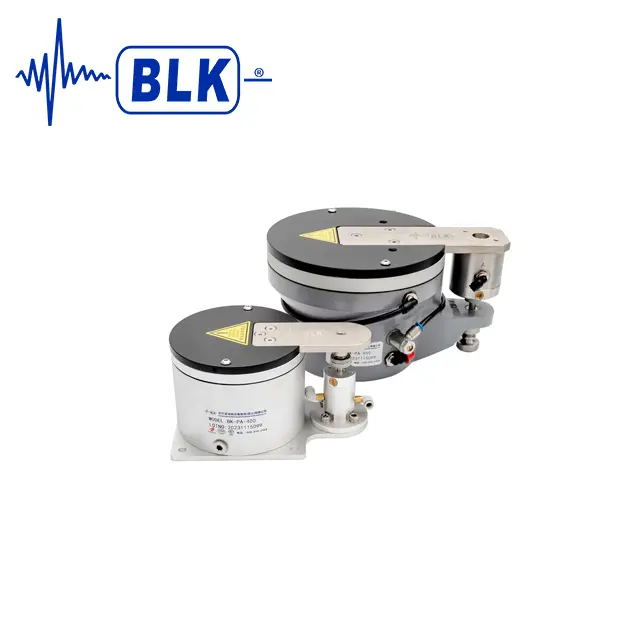

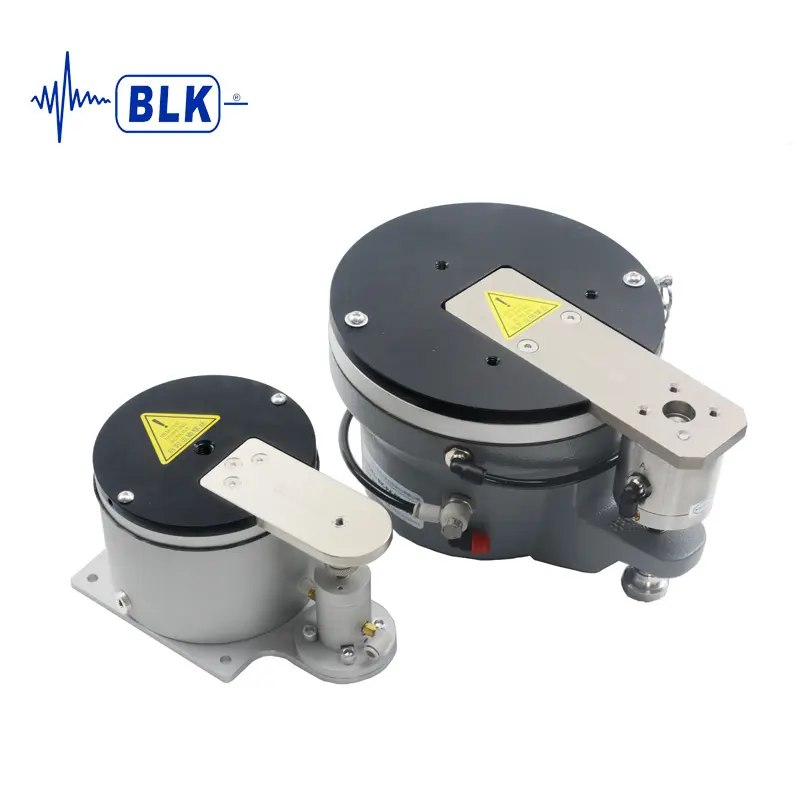

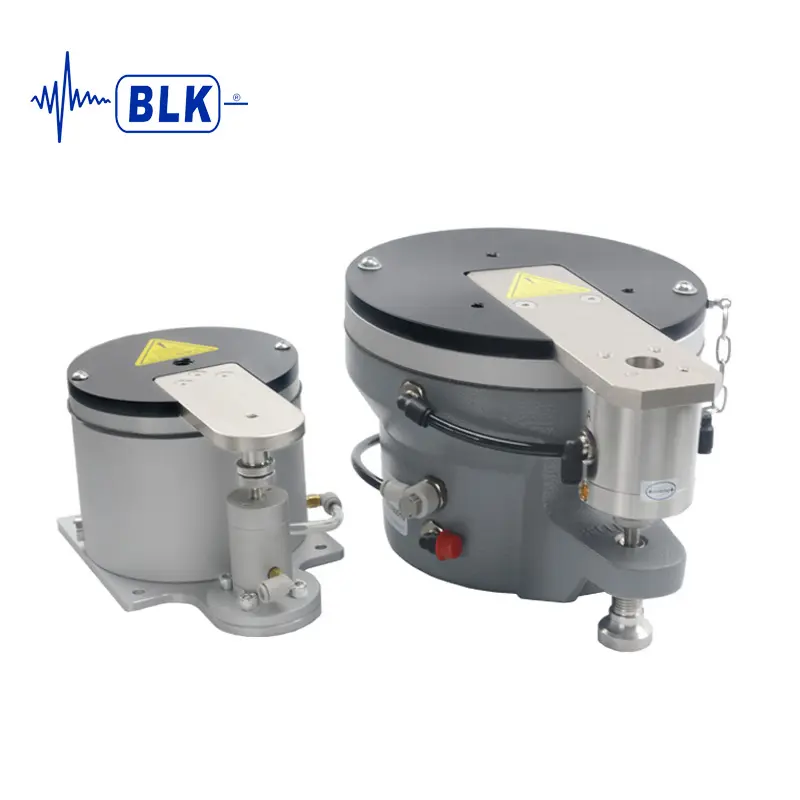

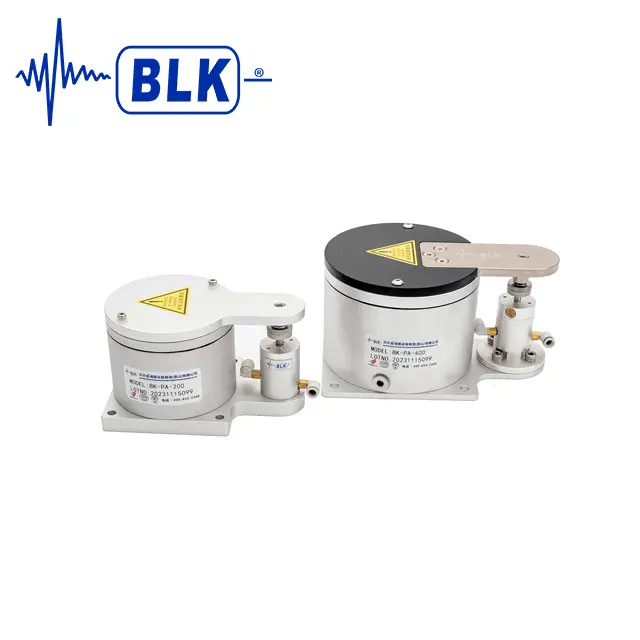

Standard BK-PA air mounts offer exceptional vibration isolation capabilities with natural frequencies as low as 1.7Hz, while specialized custom solutions can achieve ultra-low frequencies down to 0.5Hz. Engineered for high-precision stability, the complete system uses a self-leveling multi-mount setup capable of dynamically scaling to your payload requirements.
Low Natural Frequencies
Standard units achieve natural frequencies as low as 1.7Hz, with custom models operating down to 0.5Hz for critical low-frequency isolation.
Three-Point Support Base
A complete system integrates at least 3 active air mounts based on the geometric principle that three points determine a stable plane.
Horizontal Regulators
Each individual air mount includes an integrated horizontal regulator serving simultaneously as both the load sensor and height control unit.
Custom Load Expansion
System configuration is fully modular; additional active mounts can be added to support increasing machinery weight and dynamic loads.
Frequently Asked Questions
Standard BK-PA air mounts provide natural frequencies as low as 1.7Hz. For specialized applications demanding ultra-low frequency control, customized units can reach frequencies as low as 0.5Hz.
At least three active air mounts are required because geometrically, three points define a plane. This setup guarantees stable kinematic leveling and balanced load distribution without mechanical rocking.
The horizontal regulator is a dual-function component embedded in each air mount, operating both as a high-precision load sensor and an automatic height control unit.
Yes. While three mounts constitute the minimum requirement, the total number of active air mounts can be scaled up to accommodate greater machine weights and larger dimensions.
Yes, custom-engineered BK-PA variants are available to address specialized vibration isolation criteria, achieving natural frequencies down to 0.5Hz.
Leveling is maintained dynamically through each mount's horizontal regulator, which detects load variations and manages height adjustments in real time.
