How do I choose between spring, rubber and pneumatic vibration isolators?

Start with the disturbing frequency of your equipment. Isolation only begins when the disturbing frequency is more than 1.41 times the isolator's natural frequency, and a ratio of 3 or higher is recommended. Rubber mounts suit higher-speed, lighter equipment; spring isolators with a natural frequency of 3–5 Hz suit chillers, pumps, fans and generators; pneumatic air mounts reaching 1.7 Hz suit precision instruments and semiconductor tools.

What information is needed to size a vibration isolator?

Provide the equipment operating weight, center of gravity position, number and layout of support points, operating speed (RPM) or excitation frequency, installation type (floor-mounted or suspended), environment (indoor, outdoor, corrosive) and any seismic or wind restraint requirements. Bellking engineers return a vibration isolation plan within 24 hours.

How long do Bellking vibration isolators last?

Under normal operating conditions, Bellking spring and transformer isolators perform efficiently for more than 15 years, and pneumatic air-mount isolators for more than 6 years. Steel parts use a Dacromet coating that passes 900-hour salt spray testing.

Can Bellking manufacture custom, non-standard vibration isolators?

Yes. Bellking offers 1:1 customization based on actual equipment parameters, with customized solutions available in as little as 3 working days through a defined process: requirement communication, confirmation, solution design, solution approval and production.

What lead time, warranty and documentation do you provide?

Standard models can ship within 24 hours. All products come with a 1-year free warranty, installation manuals and technical guidance. Factory inspection reports and third-party test reports are available, and production is ISO 9001 certified.

High-Quality BK-R Type Air Mounts Factories, Manufacturer

1 / 4

High-Quality BK-R Type Air Mounts Factories, Manufacturer

BK-R Air Mounts feature high-damping air springs, stable leveling, and ultra-low-frequency isolation. They effectively damp vibration and noise, ideal for precision machinery, chillers, pumps, and heavy equipment with reliable long-term performance.

Send Inquiry

Product Description

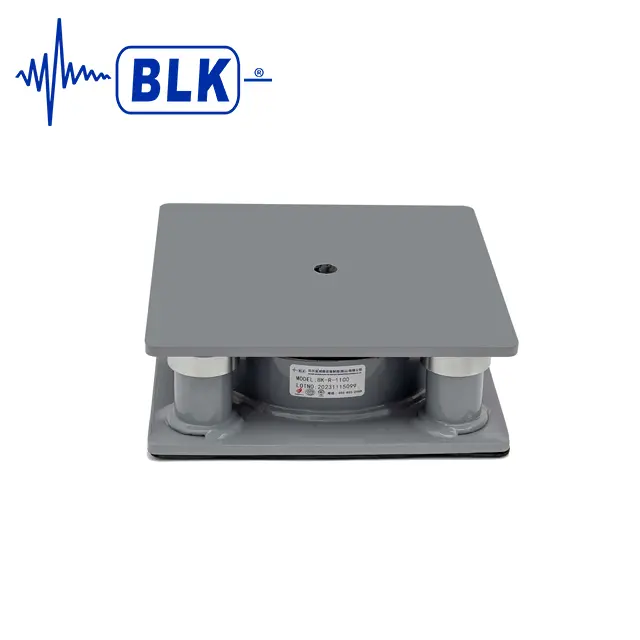

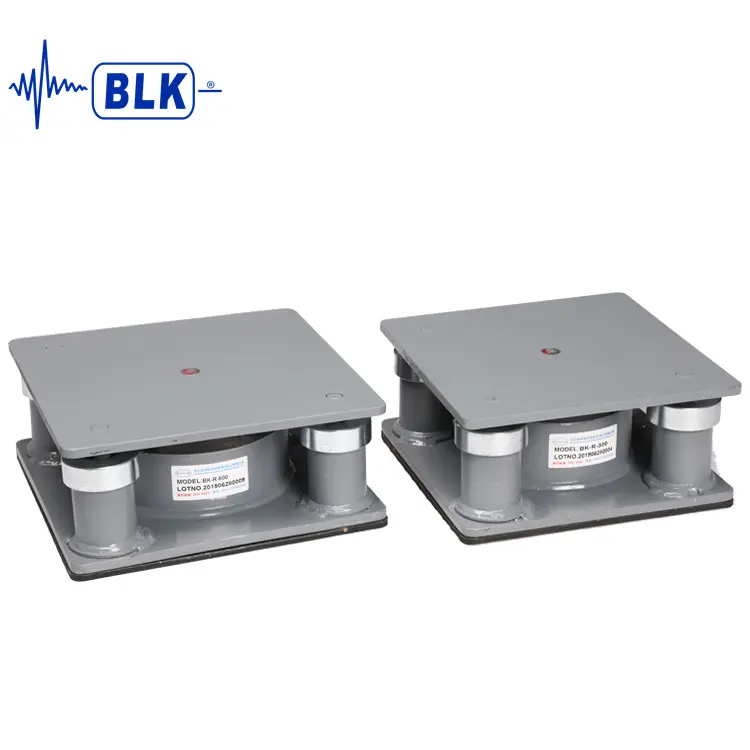

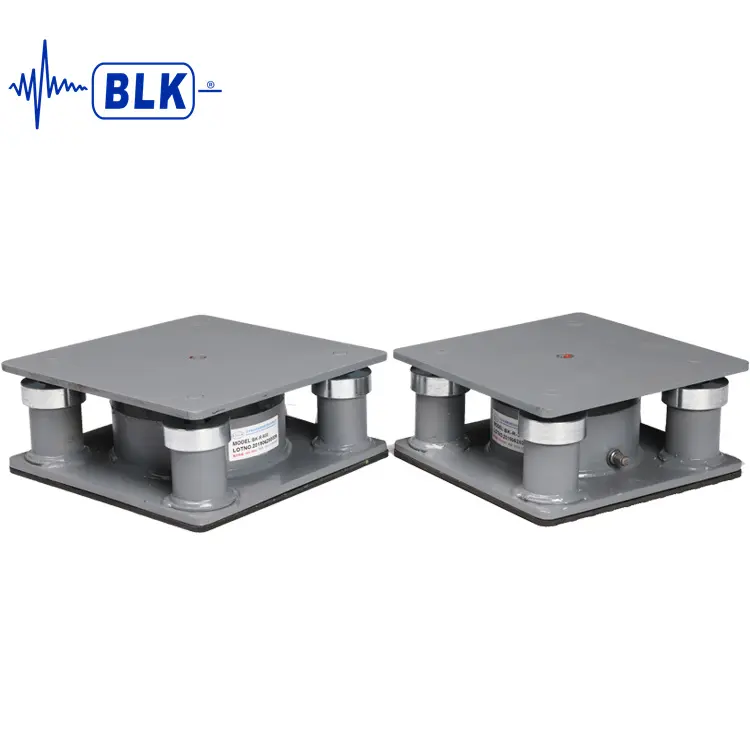

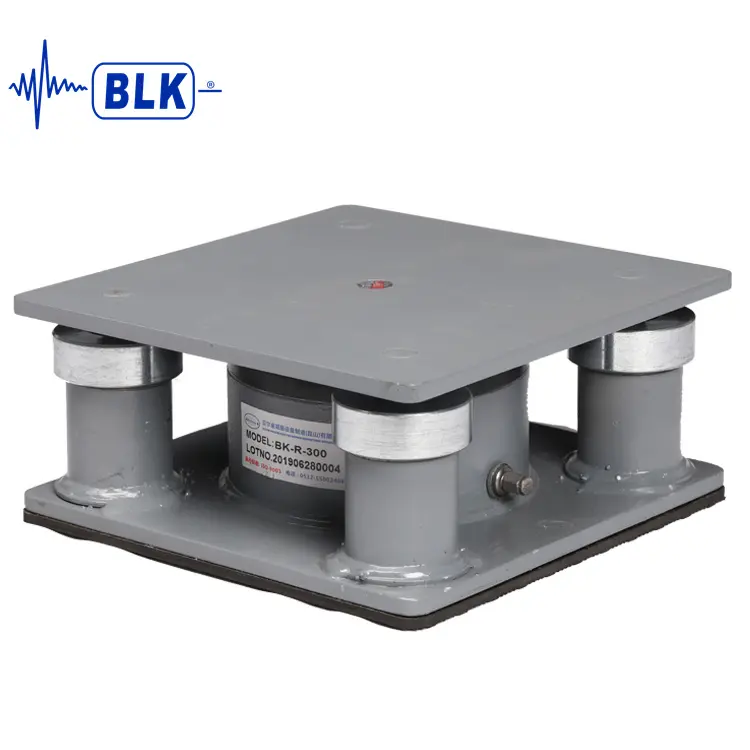

BK-R High-Performance Air Spring Isolator

BK-R is a patented high-performance air spring isolator with integrated hydraulic damping. It features a low natural frequency of 3–5 Hz and a damping ratio of 0.12–0.13, delivering 99% isolation efficiency. Made of premium neoprene rubber with oil-resistant caps, it ensures excellent weatherability and corrosion resistance. Designed for shock vibration elimination, it is ideal for high-speed presses, air compressors, shears, and precision equipment like CMMs. It effectively prevents resonance, stabilizes operation, and protects machinery and buildings.

99%

Isolation Efficiency

3–5 Hz

Natural Frequency

0.12–0.13

Damping Ratio

Key Engineering Capabilities

Patented Damping: Integrated hydraulic damping delivers combined shock and vibration control.

Durable Construction: High-grade neoprene rubber with oil-resistant caps ensures maximum weatherability and corrosion resistance.

Structural Protection: Stops operational resonance, stabilizes continuous machine movement, and protects building foundations.

Broad Application: Designed specifically for high-speed presses, air compressors, industrial shears, and precision CMMs.

Frequently Asked Questions

What is the isolation efficiency of the BK-R air spring isolator?

The BK-R provides up to 99% isolation efficiency by utilizing integrated hydraulic damping combined with a low natural frequency of 3–5 Hz.

What materials are used to manufacture the BK-R isolator?

It is engineered using premium neoprene rubber and fitted with oil-resistant caps to provide superior weatherability and corrosion resistance against harsh environments.

What machinery is the BK-R air spring isolator best suited for?

The BK-R is ideal for heavy dynamic load equipment such as high-speed presses, air compressors, and shears, as well as high-accuracy measurement instruments like Coordinate Measuring Machines (CMMs).

How does the BK-R prevent machine and structural resonance?

Through a controlled damping ratio of 0.12–0.13 and natural frequency of 3–5 Hz, the system dampens vibration transmission, stabilizing ongoing operation and avoiding resonance risks.

Does the BK-R protect the surrounding facility structure?

Yes, by eliminating shock vibrations at the installation base, the BK-R minimizes dynamic forces transferred to the floor and building structure.
