How do I choose between spring, rubber and pneumatic vibration isolators?

Start with the disturbing frequency of your equipment. Isolation only begins when the disturbing frequency is more than 1.41 times the isolator's natural frequency, and a ratio of 3 or higher is recommended. Rubber mounts suit higher-speed, lighter equipment; spring isolators with a natural frequency of 3–5 Hz suit chillers, pumps, fans and generators; pneumatic air mounts reaching 1.7 Hz suit precision instruments and semiconductor tools.

What information is needed to size a vibration isolator?

Provide the equipment operating weight, center of gravity position, number and layout of support points, operating speed (RPM) or excitation frequency, installation type (floor-mounted or suspended), environment (indoor, outdoor, corrosive) and any seismic or wind restraint requirements. Bellking engineers return a vibration isolation plan within 24 hours.

How long do Bellking vibration isolators last?

Under normal operating conditions, Bellking spring and transformer isolators perform efficiently for more than 15 years, and pneumatic air-mount isolators for more than 6 years. Steel parts use a Dacromet coating that passes 900-hour salt spray testing.

Can Bellking manufacture custom, non-standard vibration isolators?

Yes. Bellking offers 1:1 customization based on actual equipment parameters, with customized solutions available in as little as 3 working days through a defined process: requirement communication, confirmation, solution design, solution approval and production.

What lead time, warranty and documentation do you provide?

Standard models can ship within 24 hours. All products come with a 1-year free warranty, installation manuals and technical guidance. Factory inspection reports and third-party test reports are available, and production is ISO 9001 certified.

High-Quality BK-PF Type Precision Air Mounts Factories, Manufacturer

1 / 3

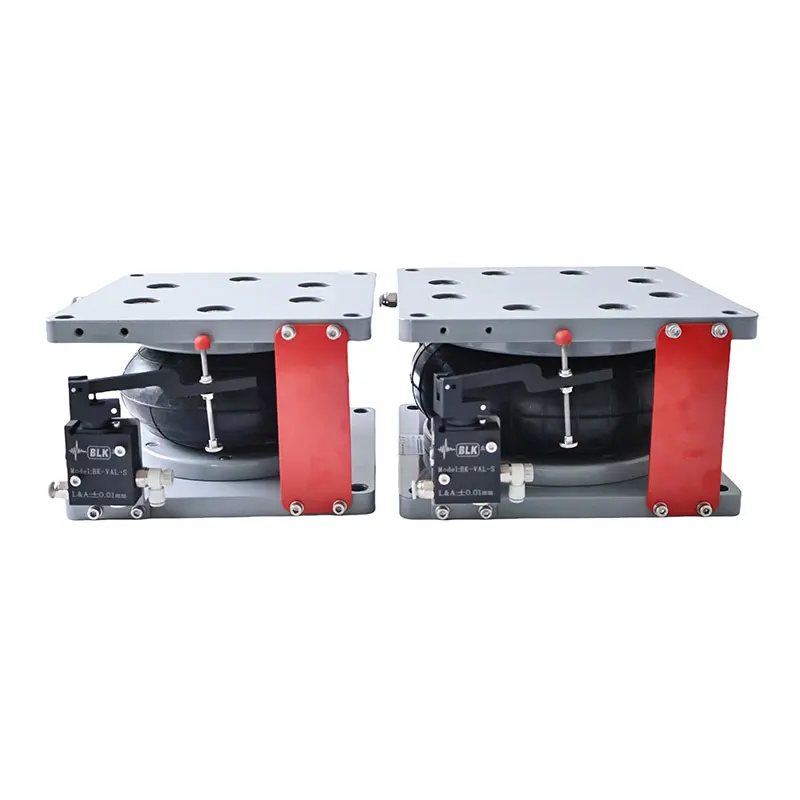

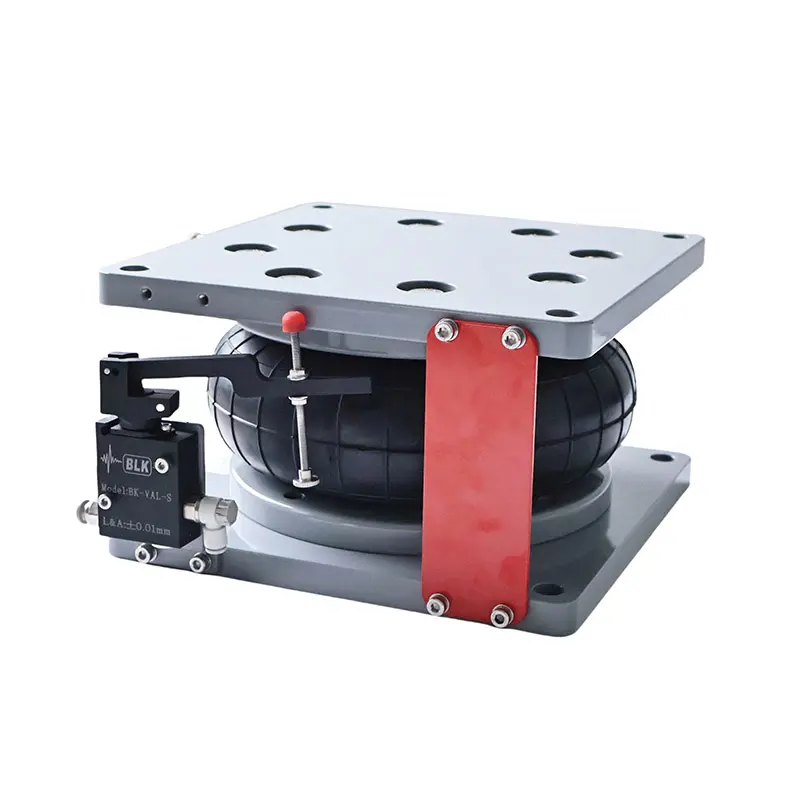

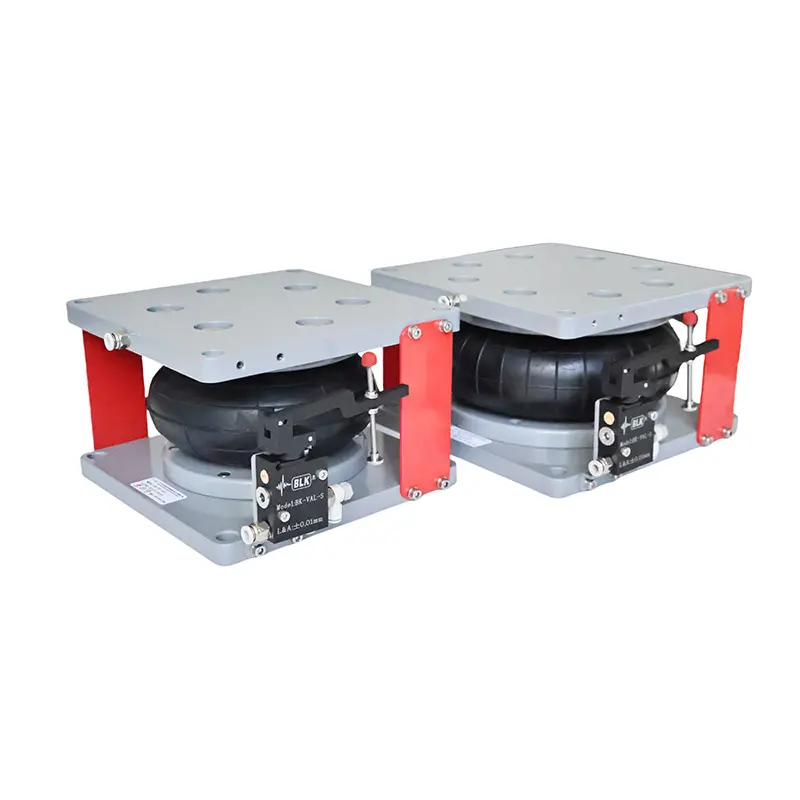

High-Quality BK-PF Type Precision Air Mounts Factories, Manufacturer

BK-PF air spring shock absorber uses compressed air for flexible vibration isolation. Its multi-layer rubber-reinforced bladder enables dynamic stiffness & load adjustment via air pressure. Equipped with high-precision leveling valves & built-in oil damping, it ensures platform stability, fast settling, and excellent vibration control for precision machinery.

Send Inquiry

Product Description

The BK-PF airbag vibration isolator is a flexible vibration damping device that uses compressed air as the elastic medium. It can dynamically adjust stiffness and load-bearing capacity by regulating the internal air pressure of the airbag. The airbag body is formed by vulcanizing multiple layers of rubber and reinforcing fabric.

The BK-PF airbag vibration isolator is equipped with a high-precision level adjustment valve, which responds quickly to changes in the load force above the equipment platform to ensure the level accuracy of the platform.

The BK-PF airbag vibration isolator is equipped with an oil-based damper, which is particularly effective in vibration reduction for motion platforms. It enhances the stiffness of the vibration isolator while significantly reducing the stabilization time of the platform.

Frequently Asked Questions

What is the BK-PF airbag vibration isolator?

It is a flexible vibration damping device that utilizes compressed air as its elastic medium to isolate and minimize mechanical vibrations.

How does the BK-PF regulate its stiffness and load capacity?

Stiffness and load-bearing capacity are dynamically adjusted by regulating the internal air pressure within the airbag body.

How is the airbag body manufactured?

The airbag body is constructed through a vulcanization process combining multiple layers of high-grade rubber and reinforcing fabric.

How does the isolator maintain platform leveling accuracy?

It features a built-in high-precision level adjustment valve that responds rapidly to shifts in load forces directly on the equipment platform.

What is the purpose of the integrated oil-based damper?

The oil-based damper enhances the overall stiffness of the unit while drastically cutting down the stabilization time required for moving platforms.

Which applications benefit most from the BK-PF isolator?

It is particularly suited for motion platforms and dynamic equipment setups that require high-precision leveling and rapid stabilization under shifting loads.
