How do I choose between spring, rubber and pneumatic vibration isolators?

Start with the disturbing frequency of your equipment. Isolation only begins when the disturbing frequency is more than 1.41 times the isolator's natural frequency, and a ratio of 3 or higher is recommended. Rubber mounts suit higher-speed, lighter equipment; spring isolators with a natural frequency of 3–5 Hz suit chillers, pumps, fans and generators; pneumatic air mounts reaching 1.7 Hz suit precision instruments and semiconductor tools.

What information is needed to size a vibration isolator?

Provide the equipment operating weight, center of gravity position, number and layout of support points, operating speed (RPM) or excitation frequency, installation type (floor-mounted or suspended), environment (indoor, outdoor, corrosive) and any seismic or wind restraint requirements. Bellking engineers return a vibration isolation plan within 24 hours.

How long do Bellking vibration isolators last?

Under normal operating conditions, Bellking spring and transformer isolators perform efficiently for more than 15 years, and pneumatic air-mount isolators for more than 6 years. Steel parts use a Dacromet coating that passes 900-hour salt spray testing.

Can Bellking manufacture custom, non-standard vibration isolators?

Yes. Bellking offers 1:1 customization based on actual equipment parameters, with customized solutions available in as little as 3 working days through a defined process: requirement communication, confirmation, solution design, solution approval and production.

What lead time, warranty and documentation do you provide?

Standard models can ship within 24 hours. All products come with a 1-year free warranty, installation manuals and technical guidance. Factory inspection reports and third-party test reports are available, and production is ISO 9001 certified.

Low Price BKTS Type Rubber Pad Factory, Manufacturer

1 / 2

Low Price BKTS Type Rubber Pad Factory, Manufacturer

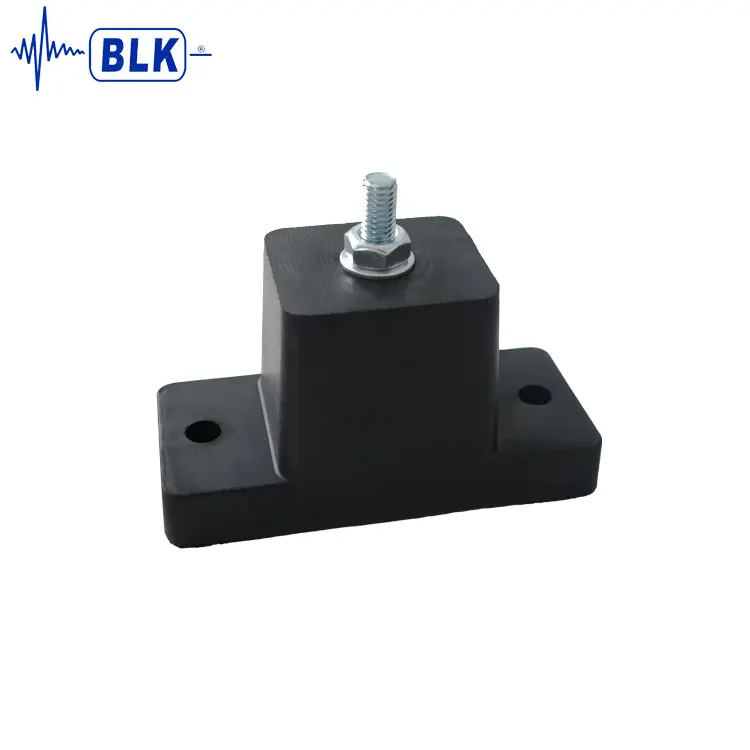

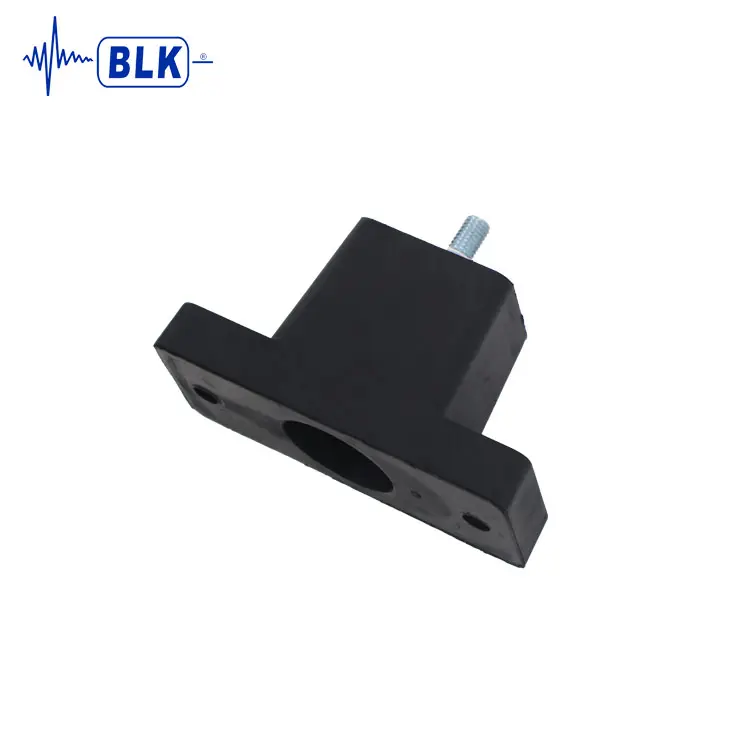

BKTS rubber foot pads are industrial-grade anti-vibration mounts with high-elasticity rubber, zinc-plated metal screws, and anti-tear, anti-aging properties. They efficiently isolate vibration, reduce noise, and resist oil & moisture. Easy to install via threaded studs, they suit Heavy duty Mini Split Heat Pumps, Air Compressor, Water Pumps, ensuring stable operation and extending equipment life.

Send Inquiry

Product Description

Products Description

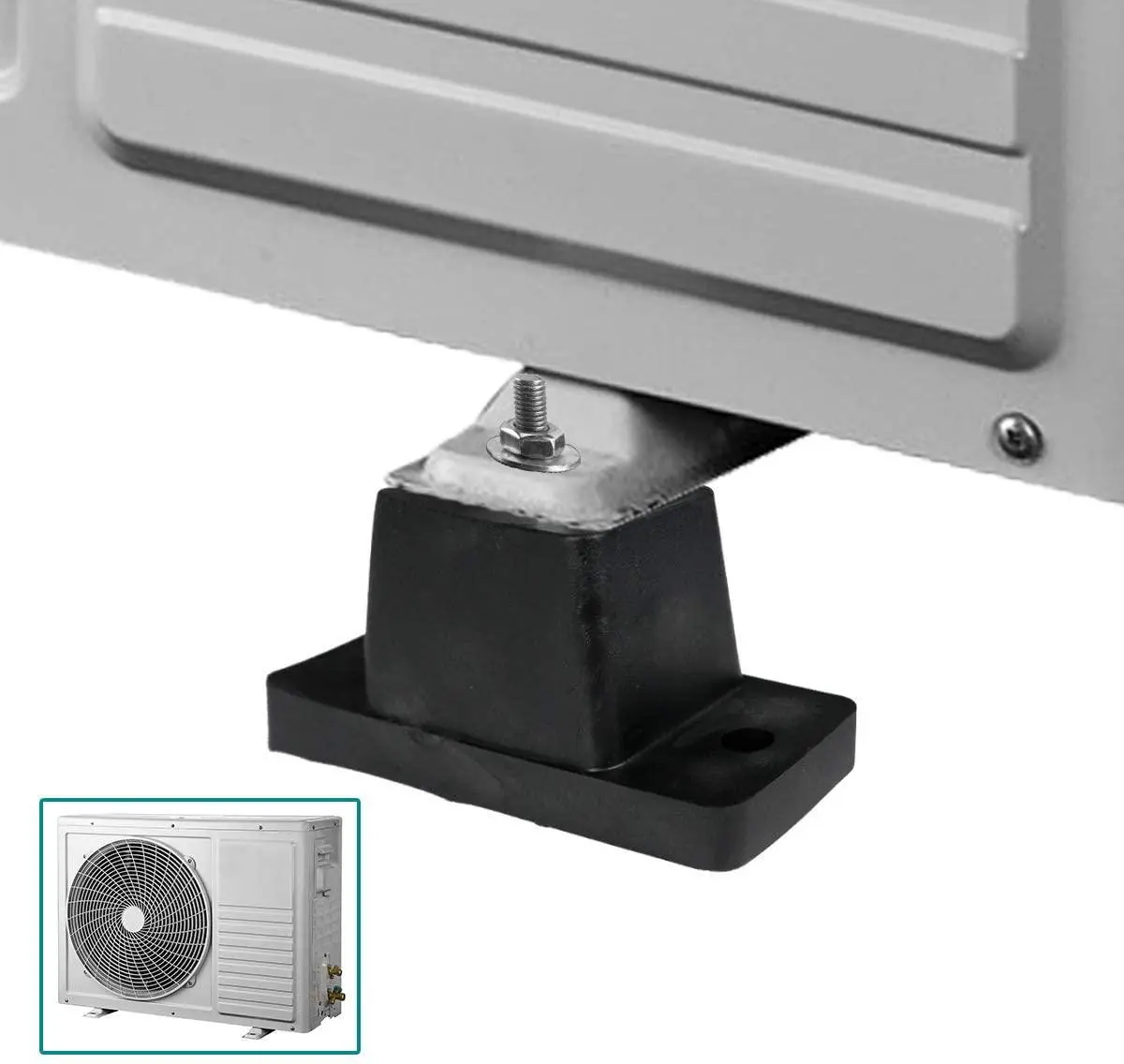

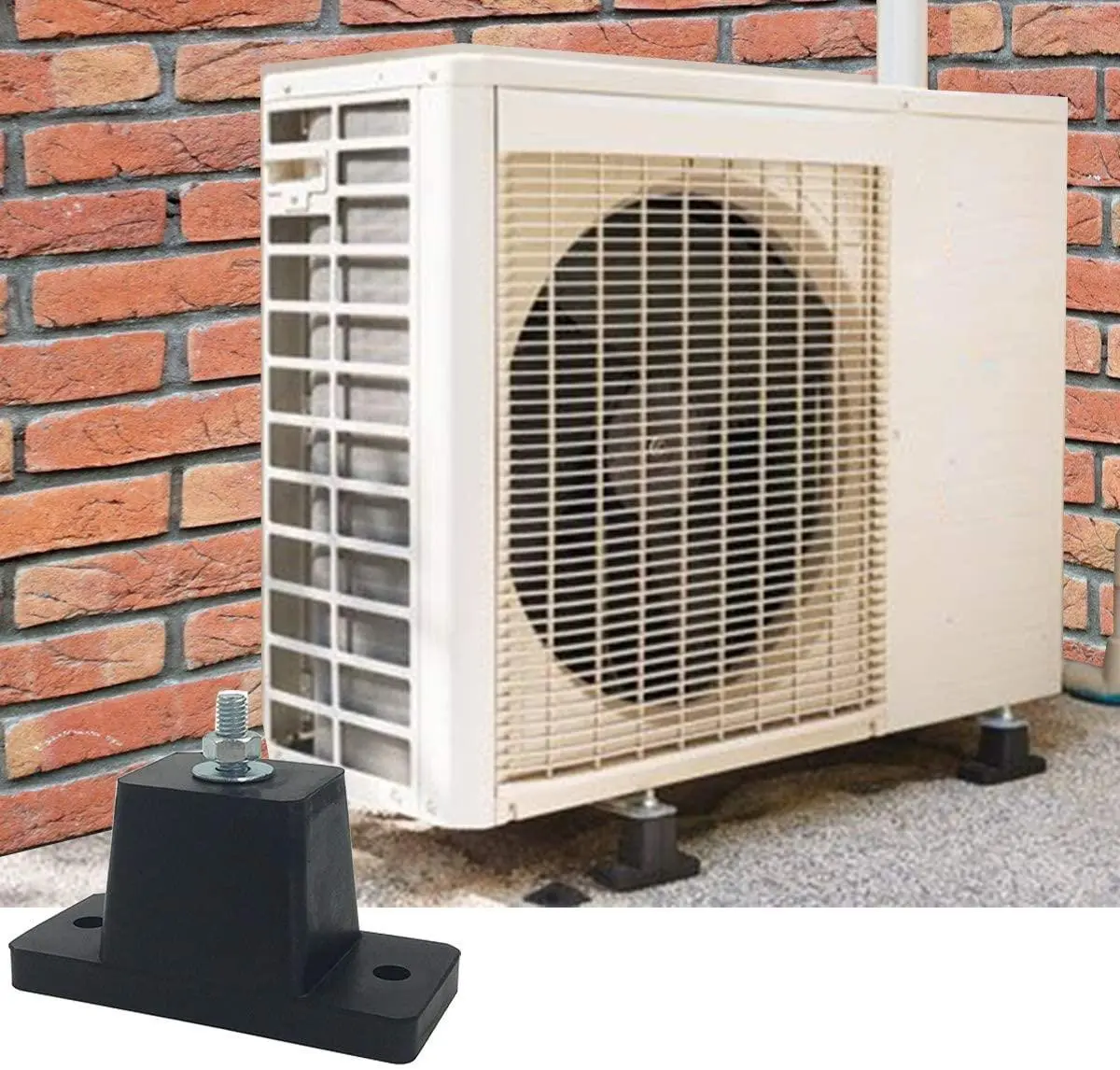

BKTS rubber pad Design to shock absorption of Heavy duty Mini Split Heat Pumps, Air Compressor, Water Pumps, etc.

ANTI VIBRATION

The Rubber Mounts with Studs and Nuts M8, which used to reduce noise and shock absorption - Supports up to 830lbs for all 4 pcs.

STRONG QUALITY

Made of Durable Rubber (SHORE A 85) and steel zinc coating, protect machine vibration interference, Resilient and Anti-Aging.

EASY INSTALLATION

All you have to do is to place the devices holes in the screws and fasten the nuts of the ANTI VIBRATION Mounts, Set includes all anchoring accessories.

Frequently Asked Questions

Q What equipment are these BKTS rubber pads compatible with?

They are engineered for shock absorption and vibration damping on heavy-duty mini split heat pumps, air compressors, water pumps, and related machinery.

Q What is the maximum load capacity for the complete set?

The full set of 4 rubber mounts supports a total maximum weight of up to 830 lbs.

Q What materials are used to ensure durability?

The mounts are manufactured from high-grade Shore A 85 durable rubber combined with a zinc-coated steel finish to resist aging and protect against vibration interference.

Q What size thread is used for the mounting studs?

Each anti-vibration mount comes with standard M8 studs and matching fastening nuts.

Q Are mounting and anchoring accessories included in the set?

Yes, each set includes all necessary anchoring hardware, including the integrated studs and nuts.

Q How do you install these anti-vibration rubber mounts?

Installation is simple: line up the mounting holes of your unit with the M8 screws on the mounts, place them through, and tighten the accompanying nuts firmly.
