Engineered Low Frequency Isolation Mounts & Systems
Verified solutions manufactured in Kunshan, certified to ISO 9001 and engineered for disturbing frequencies down to 1.7 Hz across industrial and cleanroom environments.
Macro Industry Solutions: Overcoming the Low-Frequency Resonance Threshold
Why conventional isolators amplify micro-vibrations and how precision-tuned stiffness prevents structural resonance.
The Critical Frequency Ratio
Isolation efficiency is fundamentally dictated by the transmissible frequency ratio: r = fd / fn. System attenuation is non-existent until r > √2. Equipment operating between 5 Hz and 20 Hz (such as variable-speed chillers or massive industrial scrubbers) creates devastating resonance spikes when matched with generic stiff elastomer pads.
Semiconductor Cleanroom Footprints
Modern photolithography, electron microscopy (TEM/SEM), and wafer inspection tools require compliance with strict VC-D, VC-E, and VC-G vibration criteria. Floor-borne environmental tremors (1–10 Hz) generated by adjacent transit networks or utilities propagate directly into measurement error unless decoupled by sub-2.0 Hz precision air suspension.
Heavy Machinery Fatigue Dynamics
Hydraulic stamping presses, large reciprocating compressors, and high-megawatt transformer stations emit violent ground shock waves. Custom steel coil matrices with integrated viscous damping suppress high transient amplitude peaks without transferring destructive stress waves into neighboring structural foundations.
Low Frequency Isolation Pricing Architecture & Factory Cost Analysis
Explore commercial variables, load capacities, damping mechanisms, and indicative volume manufacturing costs directly from our Kunshan facility.
| System Classification | Resonance (fn) Range | Typical Payload / Capacity | Key Engineering Attributes | Estimated Factory Price (FOB) |
|---|---|---|---|---|
| BK-PA Precision Pneumatic Air Mounts | 1.7 Hz – 2.5 Hz | 50 kg – 2,500 kg / unit | Dual-chamber diaphragm, integrated automatic self-leveling valves | $380 – $1,450 / unit |

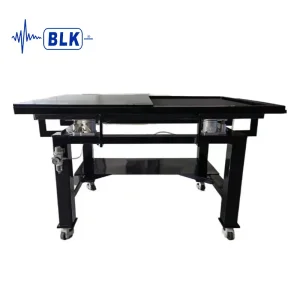

| BK-VT Active/Passive Platform Systems | 1.2 Hz – 3.0 Hz | 200 kg – 5,000 kg total | Precision granite stage, multi-axis pneumatic isolation, active control options | $3,200 – $14,000 / set |

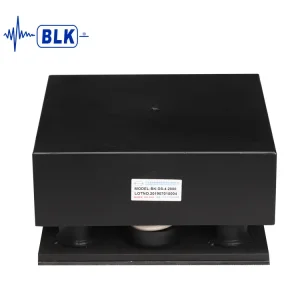

| BK-DS Damped Heavy Spring Mounts | 3.0 Hz – 5.0 Hz | 150 kg – 8,000 kg / mount | Viscous fluid damping cylinder, 50mm deflection, Dacromet treated | $75 – $320 / unit |
| BK-DSR High-Damping Elastomer Mounts | 6.0 Hz – 10.0 Hz | 20 kg – 800 kg / mount | Synthetic oil-resistant polymer, multi-directional shear damping | $18 – $65 / unit |
| BK-MT Heavy Inertia Base Isolation Matrix | 2.5 Hz – 4.5 Hz | 2,000 kg – 40,000 kg | Structural steel frame, concrete mass core, perimeter restraint brackets | $1,800 – $8,500 / set |
Engineering Deployments & Global Compliance Assurance
From seismic-rated HVAC plant basements to ISO Class 1 cleanrooms, discover our field-validated integration pathways.
Semiconductor Metrology
Integration of BK-PA air mounts directly beneath coordinate measuring machines (CMM) and laser scanning platforms to insulate against sub-3Hz background facility rumble.
HVAC & Rooftop Chillers
Application of BK-DS heavy-duty spring isolators paired with custom inertia bases to decouple large rotary compressors from roof structures, ending tenant noise disputes.
Substation Power Transformers
Eliminating continuous 100 Hz / 120 Hz core magnetostrictive hum and ground shudder utilizing BKDD multi-layer shear mounts with extreme electrical resistance properties.
Global Standards Compliant
All factory units are manufactured to comply with ASHRAE 2021 HVAC, ISO 2017 seismic ratings, RoHS directives, and are subjected to 900-hour ASTM B117 salt spray chambers.
Vibration Isolation Roadmap: 2026–2030
Strategic advancements transitioning passive mechanics into active, sensor-informed adaptive structural dampening.
Active Cancellation
Integrating piezo actuators into pneumatic manifolds to neutralize sub-1.0 Hz vibration waves through real-time phase inversion.
Embedded Telemetry
Smart load cells embedded in spring caps to continuously stream settlement data, dynamic G-force, and cyclic fatigue indicators directly to ERP/SCADA.
Auxetic Metamaterials
Developing molecularly architected polymer matrices exhibiting negative Poisson's ratio for unprecedented shear-damping across wide temperature swings.
Digital Twin Tuning
Cloud-based finite element modeling (FEM) calculating resonant harmonics from client CAD models, automating CNC tooling setup in under 48 hours.
Frequently Asked Questions (FAQ)
Core engineering guidance concerning low-frequency isolation selection, installation, and pricing parameters.
Why is pneumatic isolation preferred over steel springs below 3 Hz?
To achieve a natural frequency (fn) below 3 Hz with steel springs, extreme static deflection is required (deflection δ ≈ 250 / fn2). At 1.5 Hz, a spring requires over 110 mm of static compression, creating extreme lateral instability, potential buckling, and massive physical envelopes. Pneumatic isolators bypass mechanical deflection limits by utilizing air column compressibility, achieving 1.7 Hz in compact housings.
How does our Kunshan factory guarantee custom isolator turnaround?
Bellking maintains vertically integrated CNC machining centers, robotic welding cells, and an internal elastomeric vulcanization workshop. Because engineering calculations, FEA verification, and tooling are managed in-house, custom mounting plates, non-standard coil windings, or tailored viscous damping rates can be engineered and sampled within 3 to 5 business days.
What testing documentation is delivered with volume production orders?
Every commercial order is dispatched alongside ISO 9001 quality certificates, material mill test certifications, tensile/compression load deflection hysteresis graphs, dynamic stiffness ratings, and certified Dacromet 900-hour salt spray corrosion test reports.
How does operating temperature affect damping performance?
Standard nitrile and natural rubber mounts experience stiffening below -10°C and degradation above 70°C, which alters their natural frequency. For extreme applications, our team designs isolators utilizing high-grade fluororubber, silicone formulations, or sealed stainless steel fluid dampers to ensure stable damping performance from -40°C to +120°C.
