Custom High Performance Isolator Factories & Price

Engineering-grade anti-vibration systems and elastomeric mounts engineered for sub-2.0 Hz precision, ISO 9001 compliance, and factory-direct OEM/ODM agility worldwide.

Direct OEM Integration

Featured Industrial Vibration Isolator Lineup

Explore our verified high-efficiency shock mitigation systems, damping pads, and resonant-dampened optical isolation platforms manufactured directly in Kunshan, China.

High-Quality BK-DT Type Low-Frequency High-Damping Optical Vibration Isolation Platform
High-Quality BK-DT Type Low-Frequency High-Damping Optical Vibration Isolation Platform Factory, Manufacturer
View Specifications
Engineering Whitepaper

Physics of Micro-Vibration Isolation: Factory Precision & Dynamic Damping

To achieve superior vibration attenuation in high-precision manufacturing, structural engineering must account for both steady-state excitation and transient shock. Custom isolator factories must overcome fundamental harmonic resonances while balancing static stiffness and dynamic compliance.

Harmonic Attenuation & Frequency Ratio

Active vibration isolation requires precise calibration where disturbing frequency ($f_d$) exceeds natural frequency ($f_n$) by a factor greater than $\sqrt{2}$. Bellking isolators are engineered to hit target frequency ratios ($f_d / f_n \ge 3$), reaching isolation efficiencies upwards of 99% and transmissibility under 1%.

Advanced Viscous & Elastomeric Damping

Pure steel coil springs suffer from unchecked resonance at critical starting or shutdown speeds. Integrating internal viscous damping bladders and premium nitriles, our factory mounts dissipate kinetic shock rapidly, reducing peak resonant transmissibility ($Q \le 2.5$) while eliminating high-frequency transmission.

Multi-Axis Seismic & Shock Restraint

Modern high-performance isolators must do more than damp ambient noise; they must withstand severe seismic events and sudden lateral mechanical shifts. Certified designs feature internal limit snubbers capable of absorbing 3–5 G acceleration loads without structural yield or equipment displacement.

Procurement Intelligence

B2B Procurement Realities: Factory Direct Pricing Architecture

Understanding the real cost drivers of industrial isolators enables EPC contractors, engineering directors, and project procurement teams to optimize budget allocations without risking catastrophic operational downtime.

Isolator System Type Natural Frequency ($f_n$) Key Factory Cost Drivers Typical Price Scale (USD) Target ROI Lifetime
Pneumatic / Precision Air Mounts 1.2 Hz – 2.0 Hz Active auto-leveling valves, airtight diaphragm elastomer, cleanroom testing $450 – $2,800 / unit 6 – 10 Years (Continuous)
Enclosed Spring Isolators (Damped) 2.8 Hz – 5.0 Hz High-grade alloy spring wire, Dacromet anti-corrosion, viscous dampening oil $65 – $380 / unit 15+ Years (Structural)
Elastomeric & Rubber Mounts 6.0 Hz – 12.0 Hz Synthetic polymer formulation, metal-to-rubber vulcanization tooling $12 – $95 / unit 8 – 12 Years (Industrial)
Heavy Transformer Shock Mounts Sub-3.5 Hz Large multi-spring arrays, high dynamic load cells, heavy base fabrication $180 – $1,200 / unit 15+ Years (Outdoor Rated)
Inertia Bases & Pump Foundations System Dependent Structural steel beams, integrated mounting brackets, cast concrete cradles $350 – $2,400 / assembly 25+ Years (Building Life)
Supply Chain Resilience

China Factory Hub: Precision Manufacturing Ecosystem in Kunshan

Situated at the heart of the Yangtze River Delta industrial belt, Bellking integrates specialized metallurgical processing, high-precision vulcanization, and robotic fabrication within minutes of global transport hubs.

Vertical In-House Integration

From precision spring coiling and CNC machining to robotic welding and automated surface coating, complete in-house fabrication minimizes reliance on tier-2 vendors, ensuring zero margin-stacking and strict QA control.

Rapid Prototype-to-Part Cycle

Complex custom engineered isolators move from CAD modeling and dynamic finite element analysis (FEA) to physical test-bench samples in as little as 3 working days, vastly shortening EPC commissioning schedules.

Material Integrity & Dacromet

All structural steel assemblies undergo proprietary Dacromet zinc-flake passivation, delivering over 900 hours of salt spray corrosion resistance without hydrogen embrittlement hazards common in electroplated steel.

Global Export Readiness

Seamless documentation including ISO 9001 certificates, third-party SGS/TUV material testing, certified dimension schematics, and bilingual technical support simplifies import clearances worldwide.

Worldwide Standards

Localized Support, Seismic Codes & Environmental Compliance

Deploying vibration isolation equipment internationally demands compliance with stringent regional building codes, mechanical standards, and cleanroom environmental directives.

ASHRAE & IBC Compliance

Designed to meet ASHRAE Chapter 48 guidelines for mechanical equipment vibration isolation and International Building Code (IBC) seismic restraint criteria, ensuring rapid municipal engineering approval.

RoHS & REACH Certified Rubber

Elastomeric components are formulated with virgin polymers verified against EU RoHS and REACH regulations, completely free of SVHCs (Substances of Very High Concern) and toxic outgassing compounds.

24/7 Digital Engineering Support

Direct access to senior application engineers offering 24-hour sizing calculations, FEA modal simulations, load-deflection charts, and CAD/BIM drawing integration for smooth mechanical project integration.

13+
Years Engineering Expertise
37
Patents (16 National Inventions)
900h
Salt Spray Salt Anti-Corrosion
100k
Annual Unit Output Capacity
Field Deployment

Localized Application Scenarios & Engineering Case Proofs

Custom vibration control systems are pivotal across industrial facilities, high-yield cleanrooms, and municipal infrastructure. Real-world mechanical configurations demand tailor-fit solutions.

Semiconductor & Nanotech Metrology

Sub-micron lithography and wafer inspection tools require strict VC-E or VC-G vibration criteria. Bellking's 1.7 Hz precision pneumatic isolators isolate ambient floor micro-tremors, preventing beam drift and yield loss.

Power Substations & Dry Transformers

Transformer core magnetostriction emits 100 Hz/120 Hz fundamental harmonics. Custom multi-stage elastomer-spring mounts prevent low-frequency structure-borne humming from propagating into commercial buildings.

Mission-Critical Data Center HVAC

High-tonnage centrifugal chillers and roof-mounted cooling towers generate severe low-frequency oscillation. Bellking concrete-filled inertia bases with spring isolators decouple mechanical rooms from hyperscale server racks.

Next-Gen Dynamics

Future Evolution: Smart Isolators, Active Piezo & AI Diagnostics

The vibration control sector is shifting from static passive mounting to intelligent, sensorized shock attenuation architectures that anticipate machine instability and mechanical wear.

Active-Passive Hybrid Platforms

While passive pneumatic mounts isolate high frequencies, sub-1.0 Hz building sways are countered via integrated electromagnetic or piezoelectric actuators providing real-time opposing force fields with zero lag.

MEMS Sensor & Cloud Health Monitoring

Embedded wireless tri-axial MEMS accelerometers continuously capture acceleration, spring deflection, and ambient heat signatures, triggering predictive maintenance alerts long before seal degradation occurs.

Sustainable Polymer Metallurgy

Factory research focuses on cold-resistant bio-derived nitriles and recyclable thermoplastic elastomers that resist ozone, UV, and hydraulic oil damage while maintaining constant loss factors ($tan\ \delta$) across -40°C to +90°C.

Engineering Help Desk

Frequently Asked Technical Questions (FAQ)

Direct answers to the most common engineering and procurement questions regarding high-performance isolators.

How do I calculate the required static deflection for low-frequency applications?
Static deflection ($\delta$) directly determines the natural frequency ($f_n$) through the relation $f_n \approx \frac{5}{\sqrt{\delta}}$ (where $\delta$ is in cm). For example, achieving a low natural frequency of 3.0 Hz requires an isolator static deflection of approximately 28 mm under the actual supported equipment load.
Why is internal damping vital when sizing spring vibration isolators?
Un-damped steel springs feature low internal damping ($loss\ factor \approx 0.005$). Without viscous dampening pads, equipment moving through resonant frequencies during startup or shutdown would experience severe amplitude amplification ($Q \ge 20$), causing equipment misalignment, piping fatigue, or spring failure.
What factory inspection reports are included with custom OEM shipments?
Every production batch includes full ISO 9001 quality documentation: dynamic stiffness and load-deflection test curves, raw material mill certificates, vulcanization adhesion pull-tests, and salt spray test certificates verifying compliance with corrosion resistance targets.
How does China factory production guarantee dimensional accuracy for custom isolators?
Our Kunshan facility employs fully automated CNC machining centers, laser cutting beds, and automated robotic welding fixtures. Tooling and molds are designed in-house with standard tolerances held within $\pm 0.1\text{ mm}$, guaranteeing exact structural alignment on site.
Can Bellking vibration mounts be retrofitted into existing mechanical rooms?
Yes. Bellking engineers provide custom height-matching conversion brackets and modular base adapters designed to slide beneath existing pumps, transformers, and chillers with minimal lift heights, avoiding pipe reconfiguration and reducing plant downtime.
Precision Portfolio

High-Precision Mounts & Engineered Spring Mount Series

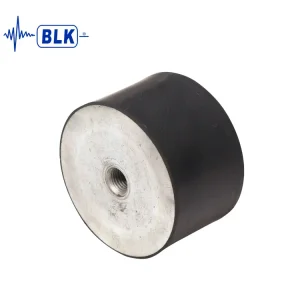

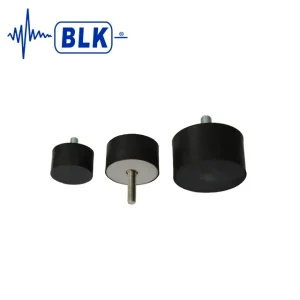

Browse our specialized precision air mounts, high-load spring units, polymer damping pads, and adjustable rubber vibration feet.
